3/8-24 Grade 5 Hex Head Cap Screws

3/8-24 Grade 5 hex head cap screws in SAE fine thread, zinc plated, in lengths from 1" to 3". They take a 9/16" wrench. Short lengths are fully threaded and longer lengths are partially threaded with about 1" of thread.

Specifications

Size: 3/8-24 (SAE fine)
Lengths: 1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/2", 3"
Wrench size: 9/16"
Grade: SAE J429 Grade 5, 120,000 psi min. tensile
Finish: zinc plated

Fine (SAE) Thread
Zinc Plated Steel

The length of a cap screw is measured from the under-head bearing surface to the extreme end of the screw.
(FT)=Full Thread | (PT)=Partial Thread
Thread Length on a 3/8-24 bolt is approx. 1"
Wrench Size = 9/16"

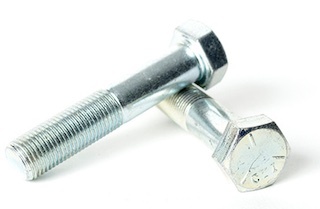

Stock Photos - to verify Thread Length, goto:

Common Uses

Automotive and truck repair
Machinery and equipment
Fine thread tapped holes

FAQ

What nut fits a 3/8-24 bolt?
A 3/8-24 fine thread hex nut, Grade 5 or higher. A coarse thread 3/8" nut will not fit.

What do USS coarse and SAE fine thread mean?
USS (UNC) coarse thread has fewer threads per inch and is the general purpose standard; it assembles fast and is less likely to cross thread. SAE (UNF) fine thread has more threads per inch, which gives a little more strength and finer adjustment, and is common on vehicles and machinery. The nut must match the thread.

How is the length of a hex bolt measured?
From under the head to the end of the bolt. The head is not included.
