M4x.7 Stainles Metric Button Head Socket Cap Screw

M4x.7 Stainles Metric Button Head Socket Cap Screw | The Nutty Company, Inc.

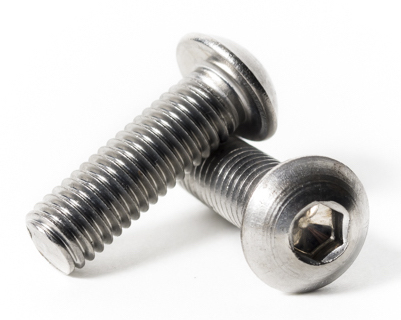

M4 x 0.7 Stainless Metric Button Head Socket Cap Screws

M4 x 0.7 (M4x0.7) A2 stainless steel button head socket cap screws, made to ISO 7380 (full thread), metric standard pitch. We stock 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm lengths. They take a 2.5mm hex key.

Specifications

  • Size: M4 x 0.7 (standard pitch)
  • Lengths: 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 50mm
  • Standard: ISO 7380 (full thread)
  • Hex key: 2.5mm
  • Material: A2 stainless steel
  • Type 316 (A4) stainless available, please contact us


A2 Stainless Steel
ISO 7380 (Full Thread)

Common Uses

  • Guards and covers
  • Bikes and vehicles
  • Electronics and enclosures

FAQ

Button head or socket head?
Button heads are lower and rounded, for a neat look and less snagging. They are for lighter loads; use socket head cap screws where full strength is needed.

How are metric screws measured?
Diameter x pitch x length, in millimeters. Length is measured from under the head to the end of the screw, except flat (countersunk) heads, which are measured overall.

What tap drill and clearance hole for M4 x 0.7?
Tap drill: 3.3mm. Clearance hole: 4.5mm (normal fit).
