Aluminum Ribbed Rivet Nuts - U.S. Sizes

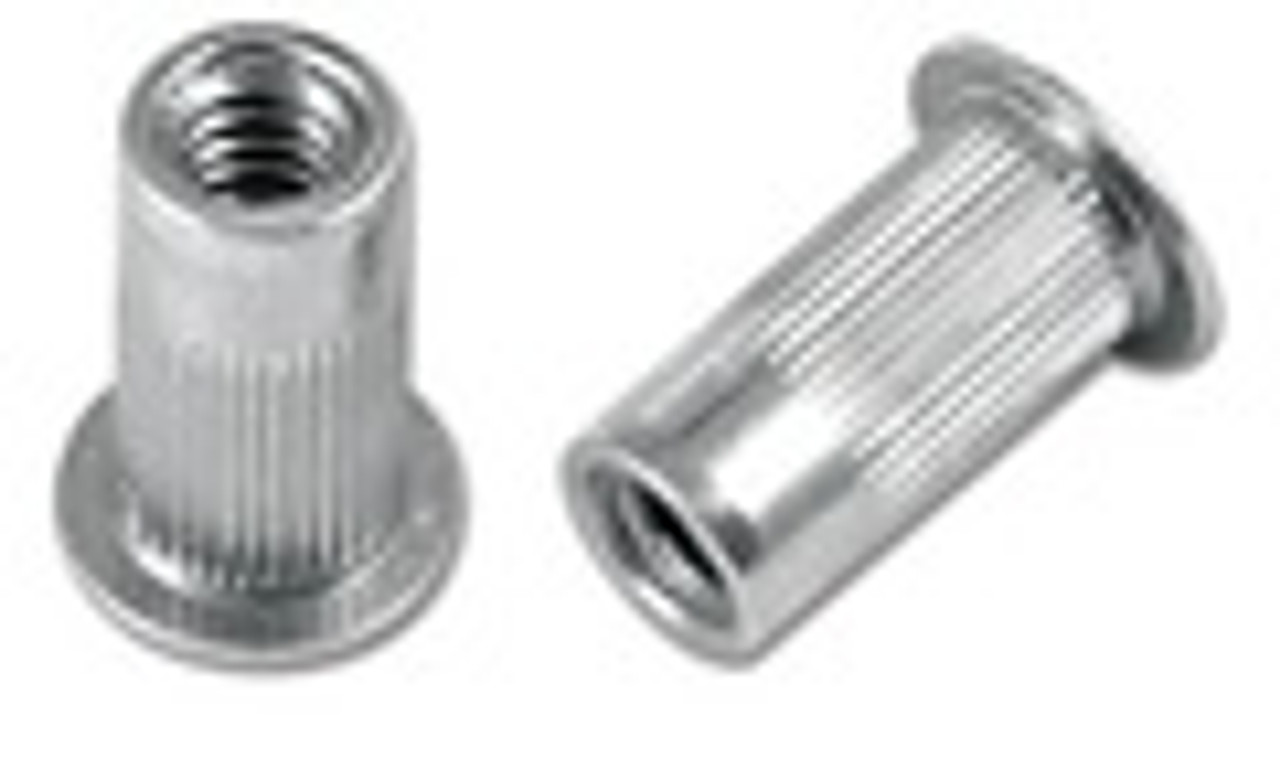

Aluminum Flange Ribbed Rivet Nut feature ribbed external body for increased torque out resistance vs conventional rivet nut. Large flange offers improved push out performance. Overall offers the best/highest strength levels. May install with all pneumatic and manual Rivet Nut tools. Also available in Steel.



Thread Size

Grip

min.-max.



Part #

(A)

Body Length

(B)

Head Diameter

(C)

Head Height

(D)

Body Diameter



Hole Size

6-32

.020 - .080

ARRN632S

.420

.390

.030

.265

17/64

6-32

.080 - .130

ARRN632L

.470

.390

.030

.265

17/64

8-32

.020 - .080

ARRN832S

.420

.390

.030

.265

17/64

8-32

.080 - .130

ARRN832L

.470

.390

.030

.265

17/64

10-24

.020 - .130

ARRN1024S

.475

.415

.030

.296

19/64

10-24

.130 - .225

ARRN1024L

.585

.415

.030

.296

19/64

10-32

.020 - .130

ARRN1032S

.475

.415

.030

.296

19/64

10-32

.130 - .225

ARRN1032L

.585

.415

.030

.296

19/64

1/4-20

.027 - .165

ARRN1420S

.580

.500

.030

.390

25/64

1/4-20

.165 - .260

ARRN1420L

.680

.500

.030

.390

25/64

5/16-18

.027 - .150

ARRN51618S

.690

.685

.035

.530

17/32

5/16-18

.150 - .312

ARRN51618L

.805

.685

.035

.530

17/32

3/8-16

.027 - .150

ARRN3816S

.690

.865

.035

.530

17/32

3/8-16

.150 - .312

ARRN3816L

.805

.865

.035

.530

17/32

Showing 1 - 10 of 10
