1/4-20 Grade 5 Hex Head Cap Screws

1/4-20 Grade 5 hex head cap screws, USS coarse thread, zinc plated, in lengths from 1/2" to 6". They take a 7/16" wrench. Short lengths are fully threaded (FT) and longer lengths are partially threaded (PT) with about 3/4" of thread.

Specifications

Size: 1/4-20 (USS coarse)
Lengths: 1/2", 5/8", 3/4", 7/8", 1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2", 2-3/4", 3", 3-1/2", 4", 4-1/2", 5", 6"
Wrench size: 7/16"
Grade: SAE J429 Grade 5, 3 radial lines on the head
Strength: 120,000 psi min. tensile
Finish: zinc plated

The length of a cap screw is measured from the under-head bearing surface to the extreme end of the screw.
(FT)=Full Thread | (PT)=Partial Thread
Thread Length on a 1/4-20 bolt is approx. 3/4"
Wrench Size = 7/16"

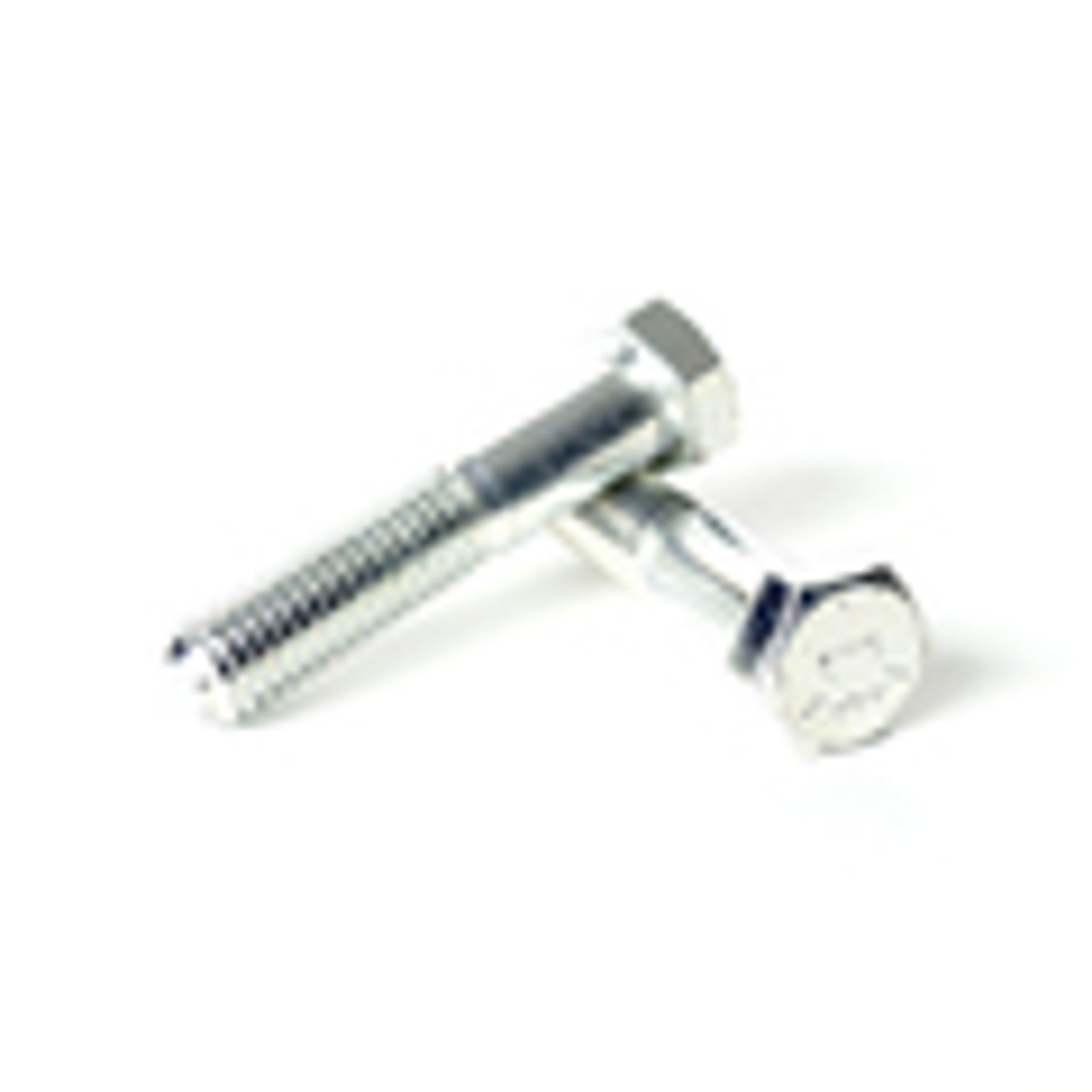

Stock Photos - to verify Thread Length, goto:

Common Uses

Machinery and equipment
Vehicle and trailer repair
Brackets, mounts and frames

FAQ

What nut fits a 1/4-20 bolt?
A 1/4-20 Grade 5 hex nut (or a nylon insert lock nut) in the same coarse thread. Use a 1/4" flat washer under the nut.

Full thread or partial thread?
Short lengths are fully threaded (FT). Longer lengths are partially threaded (PT), with a smooth shank under the head. Thread length on a partially threaded bolt is about twice the diameter plus 1/4" for lengths up to 6", and twice the diameter plus 1/2" for longer lengths.

How is the length of a hex bolt measured?
From under the head to the end of the bolt. The head is not included.
