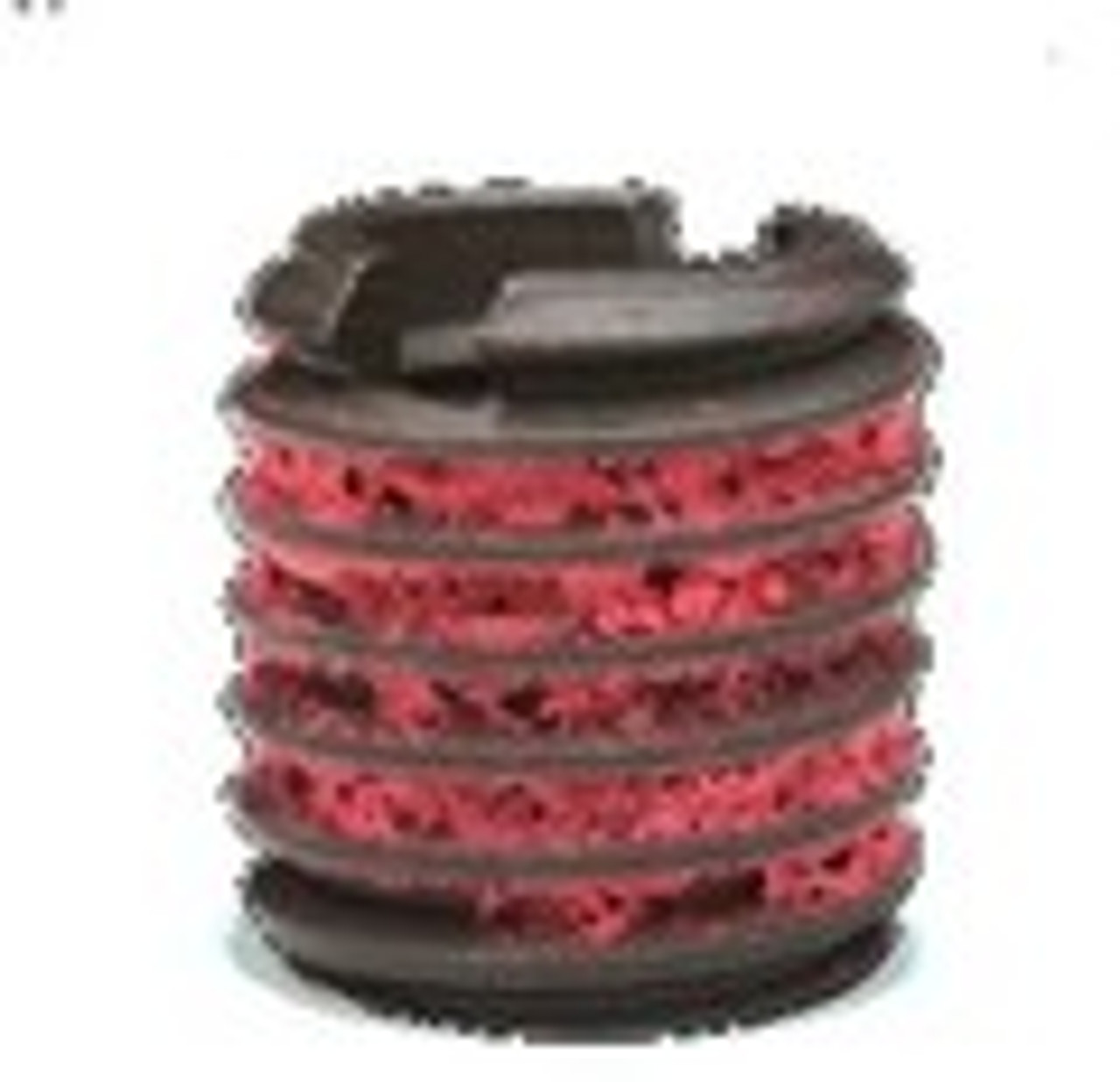

EZ-Lok Thread Repair Inserts - (USS) Coarse Thread

Technical Data


EZ-Lok Thread Repair Inserts – (USS) Coarse thread

Stock #

Internal Thread

External Thread

Length

Drill Size

Tap Size

EZ440

4-40

10-32

.250

5/32

10-32

EZ632

6-32

1/4-20

.280

7

1/4-20

EZ832

8-32

5/16-18

.290

F

5/16-18

EZ1024

10-24

3/8-16

.406

5/16

3/8-16

EZ1420

1/4-20

7/16-14

.437

23/64

7/16-14

EZ51618

5/16-18

1/2-13

.484

27/64

1/2-13

EZ3816

3/8-16

9/16-12

.515

31/64

9/16-12

EZ71614

7/16-14

5/8-11

.656

17/32

5/8-11

EZ1213

1/2-13

3/4-10

.656

21/32

3/4-10

EZ91612

9/16-12

3/4-10

.656

21/32

3/4-10

EZ5811

5/8-11

7/8-9

.687

49/64

7/8-9

EZ3410

3/4-10

1-8

.781

7/8

1-8

EZ789

7/8-9

1-1/4-7

1.125

1-7/64

1-1/4-7

EZ18

1-8

1-3/8-12

1.250

1-9/32

1-3/8-12
