Specifications

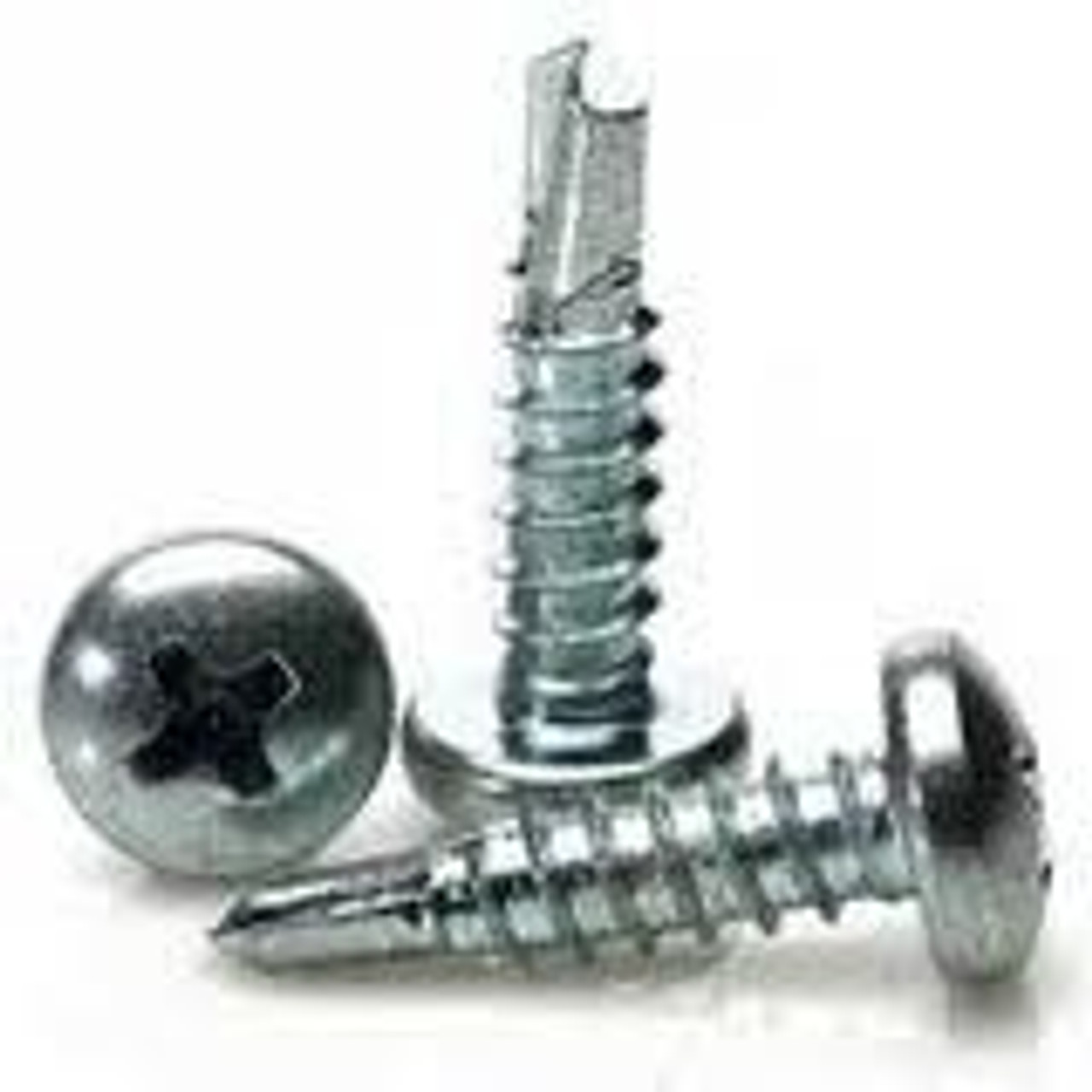

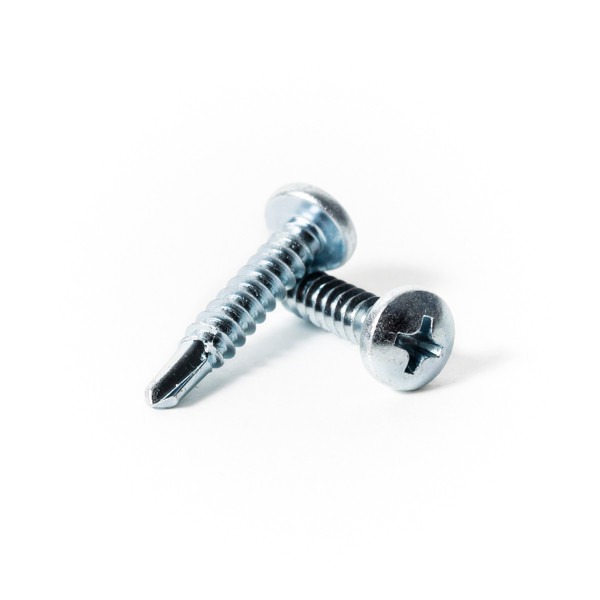

- Head: Phillips pan, #2 Phillips drive
- Sizes: #6, #8, #10
- Points: #2 (#6, #8) and #3 (#10)
- Material: steel, zinc plated
Dimensions
| Size | Phillips Drive | Point | Drilling Capacity |
| #6 | #2 | #2 | .035" - .112" |
| #8 | #2 | #2 | .035" - .112" |
| #10 | #2 | #3 | .035" - .175" |
Common Uses
- Light gauge metal studs and track
- HVAC duct and electrical boxes
- Sheet metal to sheet metal
FAQ
What is a self drilling (Tek) screw?
A self drilling screw has a drill bit point, so it drills, taps and fastens in one step with no pilot hole. The point number tells you how thick a metal it can drill: the higher the number, the thicker the metal.
How do I install self drilling screws?
Use a screw gun or drill at moderate speed, not full speed, with steady pressure. Let the point finish drilling before the threads engage, and stop when the head seats so you don't strip the threads.
