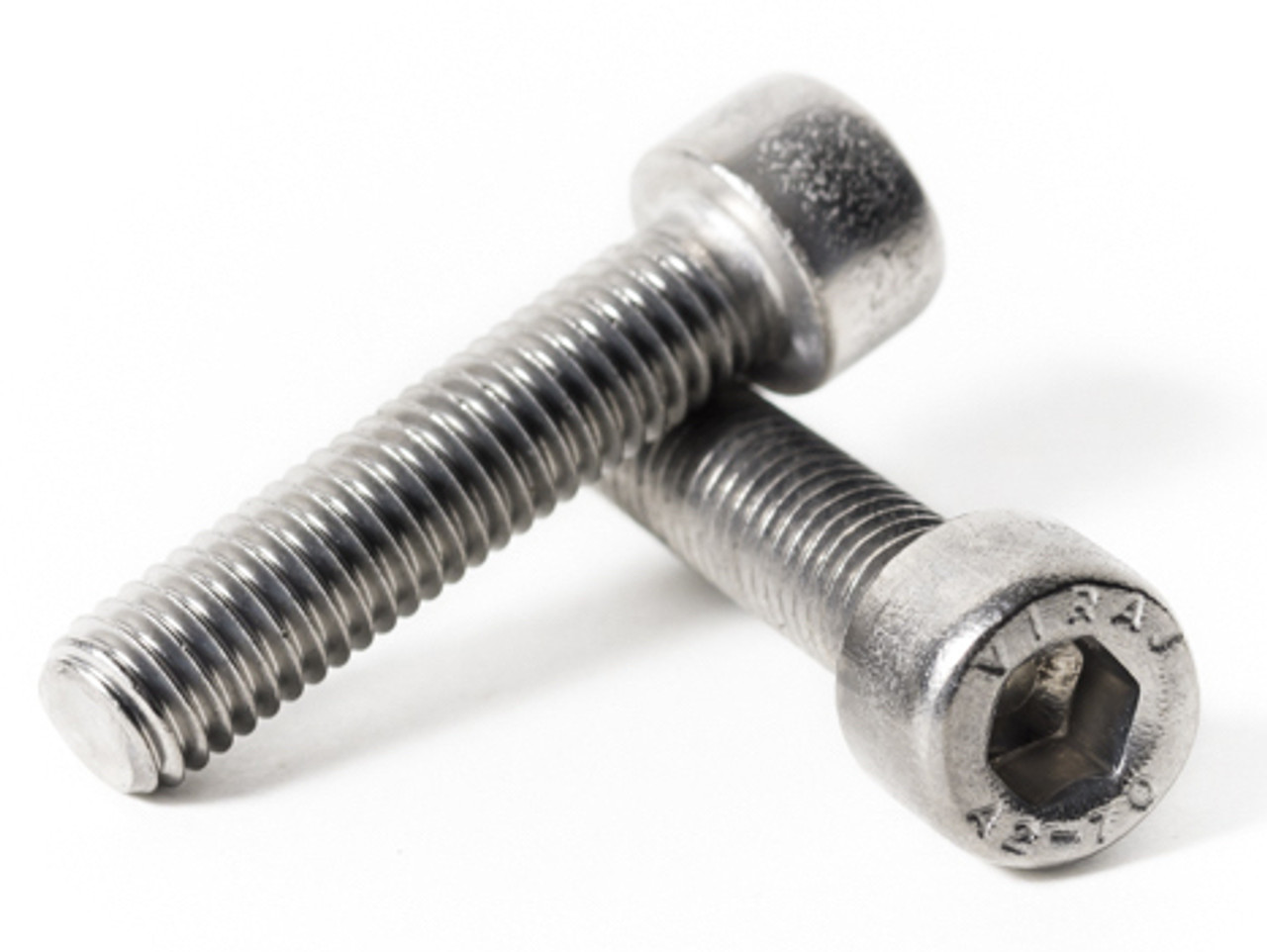

Stainless Metric Socket Head Cap Screws

A2 stainless steel metric socket head cap screws (Allen bolts), DIN 912, standard pitch, from M2 to M24: M2 x 0.4, M2.5 x 0.45, M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 1.0, M8 x 1.25, M10 x 1.5, M12 x 1.75, M16 x 2.0, M20 x 2.5, M24 x 3.0. Lengths from 4mm to 150mm. Choose a size below.

Specifications

Material: A2 stainless steel
Standard: DIN 912
Drive: hex socket
Sizes: M2 to M24, standard pitch
Type 316 (A4) stainless available, please contact us

DIN 912
A2 Stainless Steel

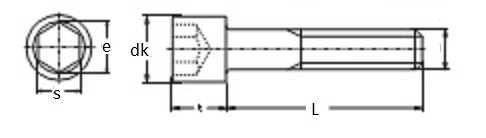

DIN 912

d	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	M16	M20	M24
dk	3.62	4.32	5.32	6.78	8.28	9.78	12.73	15.73	17.73	23.67	29.67	35.61
e	1.73	2.3	2.87	3.44	4.58	5.72	6.86	9.15	11.43	16	19.44	21.73
k	1.86	2.36	2.86	3.82	4.82	5.7	7.64	9.64	11.57	15.57	19.48	23.48
s	1.5	2	2.5	3	4	5	6	8	10	14	17	19
pitch	0.4	.45	0.5	.07	.08	1.0	1.25	1.50	1.75	2.0	2.5	3.0
Full Thread Length up to: (mm)	20	25	20	25	25	30	35	40	50	60

Common Uses

Machinery, jigs and fixtures
Robotics and automation
Marine and food equipment

FAQ

Why use socket head cap screws?
The round head is small and the hex socket lets you tighten in tight or counterbored spaces where a wrench won't fit.

What hex key fits?
M3 2.5mm, M4 3mm, M5 4mm, M6 5mm, M8 6mm, M10 8mm, M12 10mm, M16 14mm, M20 17mm, M24 19mm.

What is A2 stainless steel?
A2 is the metric (ISO 3506) name for 304 type stainless steel, the same family as 18-8. It resists rust outdoors, in wet areas and in washdown use. A4 is the 316 type, for salt water and chemicals.

How do I stop stainless threads from galling?
Stainless threads can seize (gall) when tightened fast or dry. Use an anti-seize compound, tighten at a slower speed, and do not over tighten.
