Grade 5 Serrated Hex Flange Bolt
Grade 5 Serrated Hex Flange Bolt

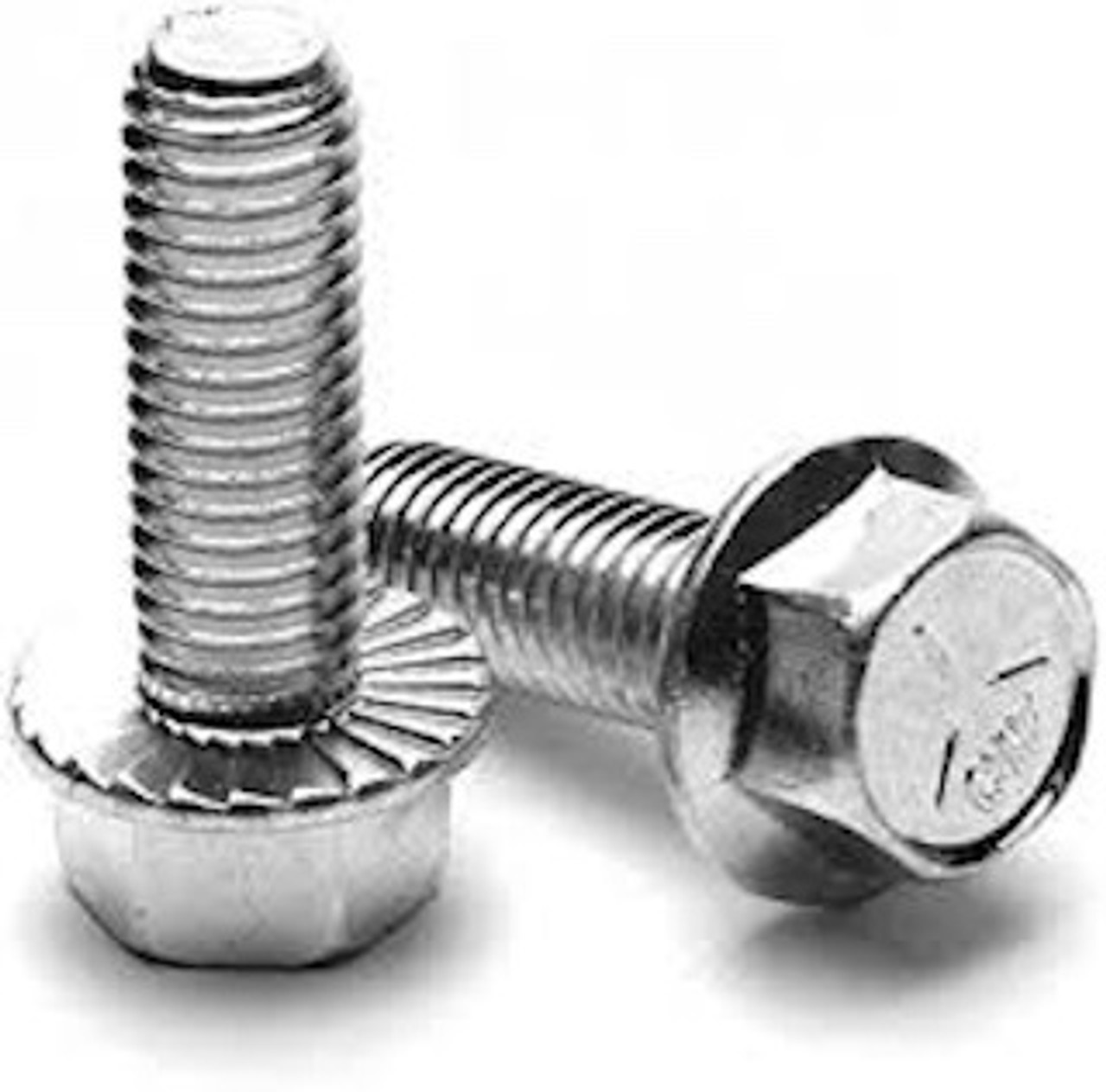

Zinc plated Grade 5 serrated hex flange bolts in 1/4-20, 5/16-18 and 3/8-16, fully threaded, from 1/2" to 1-1/2" long. Serrations under the flange bite into the surface and resist loosening from vibration, with no lock washer needed. Choose a size below.
Specifications
- Grade: Grade 5
- Head: hex with serrated flange
- Thread: USS coarse, full thread
- Sizes: 1/4-20, 5/16-18, 3/8-16
- Finish: zinc plated
Common Uses
- Vibrating equipment and machinery
- Automotive and truck panels
- HVAC and electrical equipment
FAQ
How do serrated flange bolts lock?
The serrations dig into the mating surface when tightened and resist turning backward. They mark the surface, so don't use them on finishes you need to protect or on hardened surfaces.
Do flange bolts need a washer?
No. The built-in flange spreads the load like a washer, so one part does the job of two and speeds up assembly.
