Grade 8 Hex Head Cap Screws - (USS) Coarse Thread

Grade 8 hex head cap screws in USS coarse thread, from 1/4-20 to 1-1/2-6 and up to 16" long. Most sizes are yellow zinc plated and made in North America (USA / Canada). The larger and longer sizes also come in plain finish, USA made and high quality Taiwan imports made to SAE J429. Choose a size below.

Specifications

  • Grade: SAE J429 Grade 8, medium carbon alloy steel, quenched and tempered, 6 radial lines on the head
  • Strength: 150,000 psi min. tensile, 130,000 psi min. yield, 120,000 psi proof load
  • Thread: USS coarse (UNC)
  • Sizes: 1/4-20 to 1"-8, plus 1-1/8-7, 1-1/4-7 and 1-1/2-6
  • Finish: yellow zinc plated; plain on some larger sizes

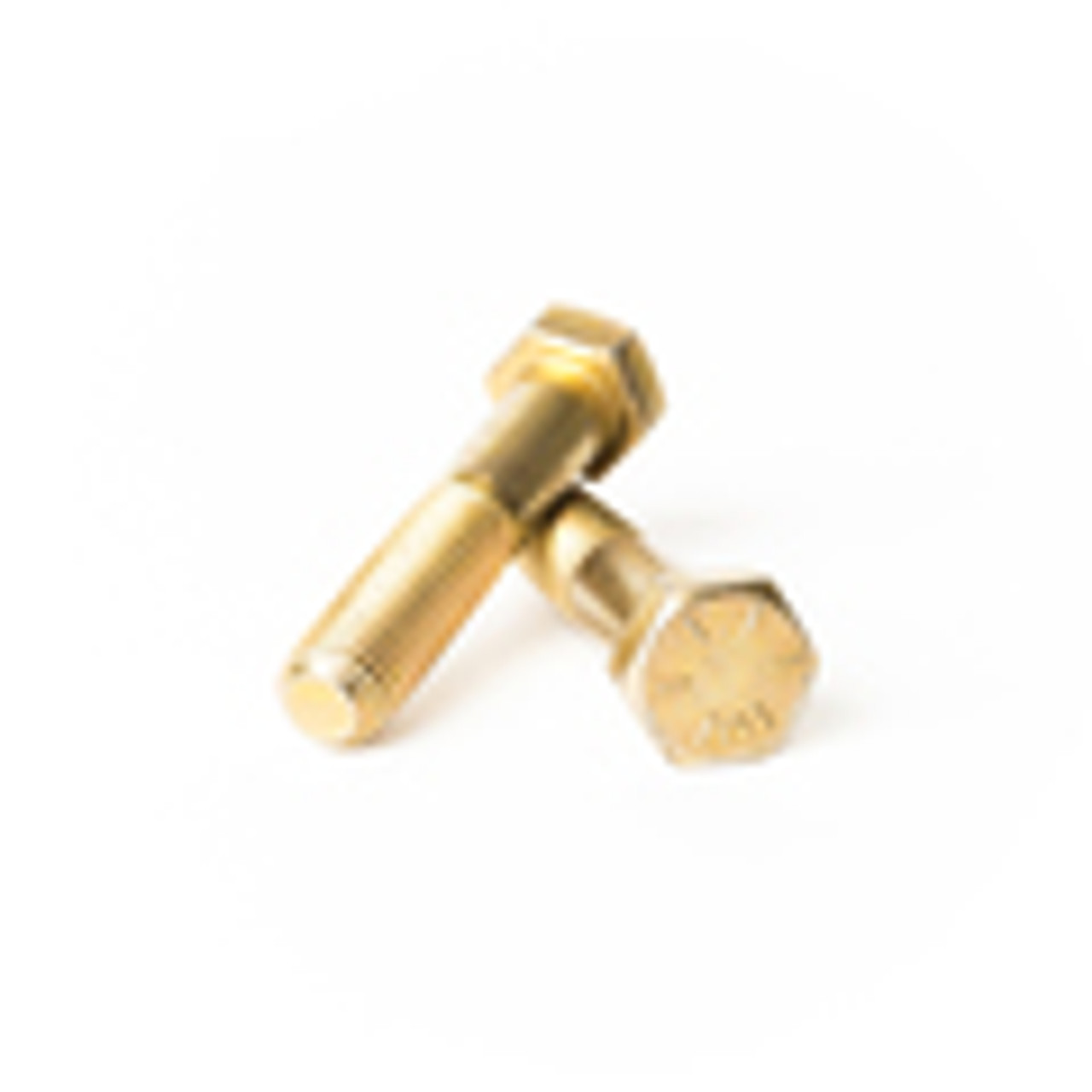

Grade 8 Hex Head Cap Screws
Coarse (USS) Thread
Yellow Zinc Plated Alloy Steel

Made in North America (USA / Canada)

The length of a cap screw is measured from the under-head bearing surface to the extreme end of the screw.
(FT)=Full Thread | (PT)=Partial Thread


Stock Photos - to verify Thread Length, goto:

Common Uses

  • Heavy equipment and machinery
  • Truck, trailer and suspension work
  • High load and high vibration joints
  • Farm and construction equipment

FAQ

What is the difference between Grade 2, Grade 5 and Grade 8?
Grade 2 is low carbon steel with no head markings (74,000 psi minimum tensile in 1/4" to 3/4"). Grade 5 is medium carbon steel, heat treated, with 3 radial lines on the head (120,000 psi). Grade 8 is medium carbon alloy steel, heat treated, with 6 radial lines on the head (150,000 psi). Pair each grade with a nut of the same grade or higher.

How do I know a bolt is Grade 8?
Grade 8 bolts have 6 radial lines on the head, plus the manufacturer's mark. Grade 5 has 3 lines and Grade 2 has none.

Which nut and washer go with these bolts?
Match the thread and use a nut of the same grade or higher: Grade 5 nuts with Grade 5 bolts and Grade 8 nuts with Grade 8 bolts. Hardened (Grade 8 / through-hardened) flat washers keep high strength bolts from digging into the surface.

Full thread or partial thread?
Short lengths are fully threaded (FT). Longer lengths are partially threaded (PT), with a smooth shank under the head. Thread length on a partially threaded bolt is about twice the diameter plus 1/4" for lengths up to 6", and twice the diameter plus 1/2" for longer lengths.
