Socket Set Screws - Cup Point - (SAE) Fine Thread
Socket Set Screws - Cup Point - (SAE) Fine Thread

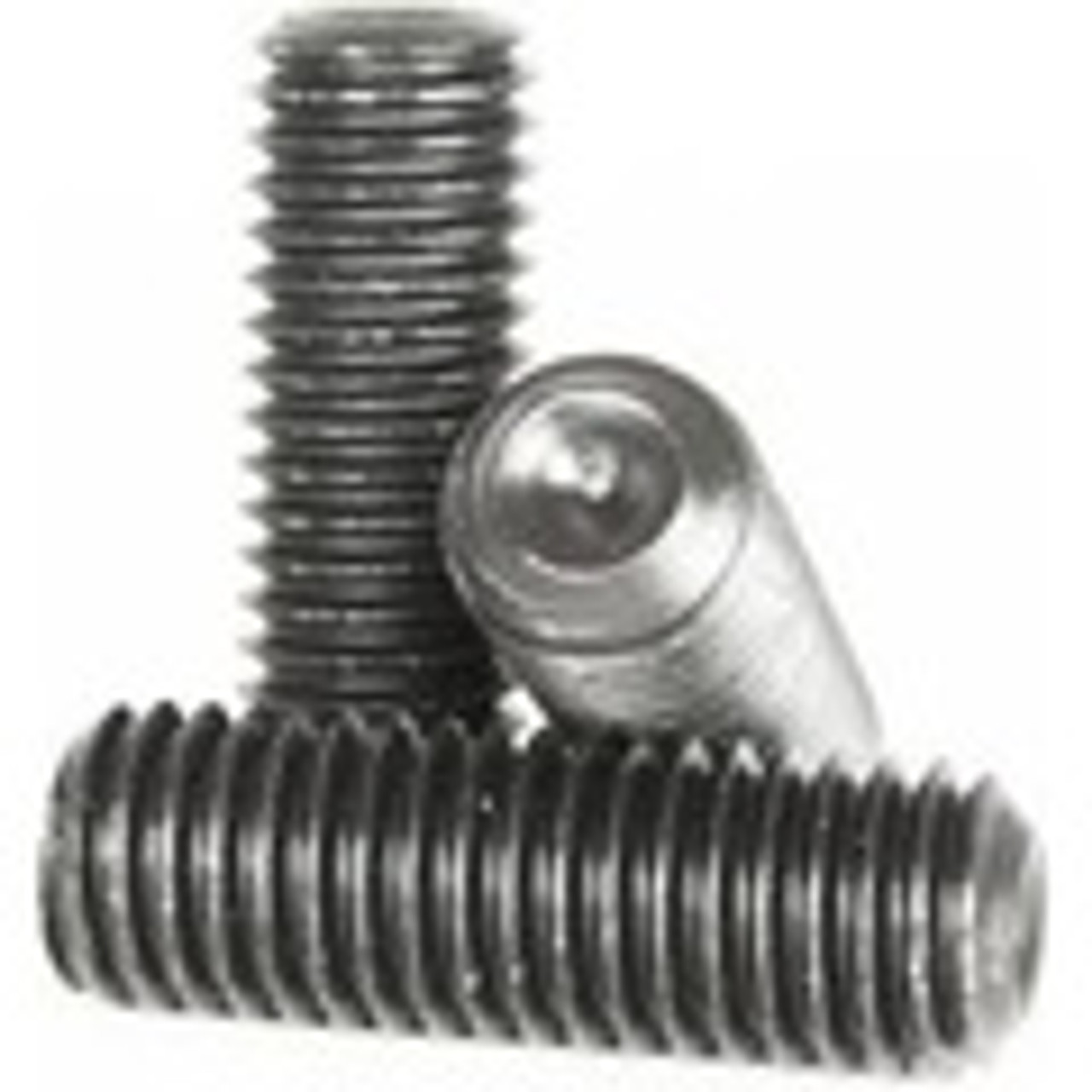

Alloy steel socket set screws with a cup point, in SAE fine (UNF) thread from #0-80 to 3/4"-16, in lengths from 1/16" to 3". These headless screws have a hex socket and a hollow cup point that digs in to lock pulleys, collars, gears and knobs onto shafts. They are made to ASTM F912 with a black oxide finish. Choose a size below.
Specifications
- Material: heat treated alloy steel, ASTM F912, Rockwell C45-53
- Finish: black oxide
- Thread: SAE fine (UNF), class 3A
- Point: cup
- Drive: hex socket (Allen)
- Sizes: #0-80, #1-72, #2-64, #4-48, #5-44, #6-40, #8-36, #10-32, #12-28, 1/4"-28, 5/16"-24, 3/8"-24, 7/16"-20, 1/2"-20, 5/8"-18, 3/4"-16
- Lengths: 1/16" to 3"
- Other points (flat, oval, cone, dog, half dog): contact us
Socket Set Screws are manufactured from High Strength Alloy Steel and have a Black Oxide finish. Socket Set Screws are available with various styles of points for different applications. The most common point style is the Cup Point and fully stocked by The NUTTY COMPANY, Inc. This hollow cup point allows for the screw to dig in and hold tightly on the fixture it will be bearing on. Often used to lock pulleys and collars onto shafts.
|
Common Uses
- Pulleys and sprockets
- Shaft collars
- Gears, knobs and handles
- Couplings
FAQ
What does a cup point set screw do?
The cupped end digs into the shaft as it is tightened, holding a collar, pulley, gear or knob in place. For the best hold, tighten against a flat ground on the shaft. Cup point set screws are the most common style.
Do you have other point styles?
We stock cup point, the most common style. Flat, oval, cone, knurled cup, dog and half dog points are available; please contact us.
How are set screws measured?
Set screws are measured overall, end to end.
