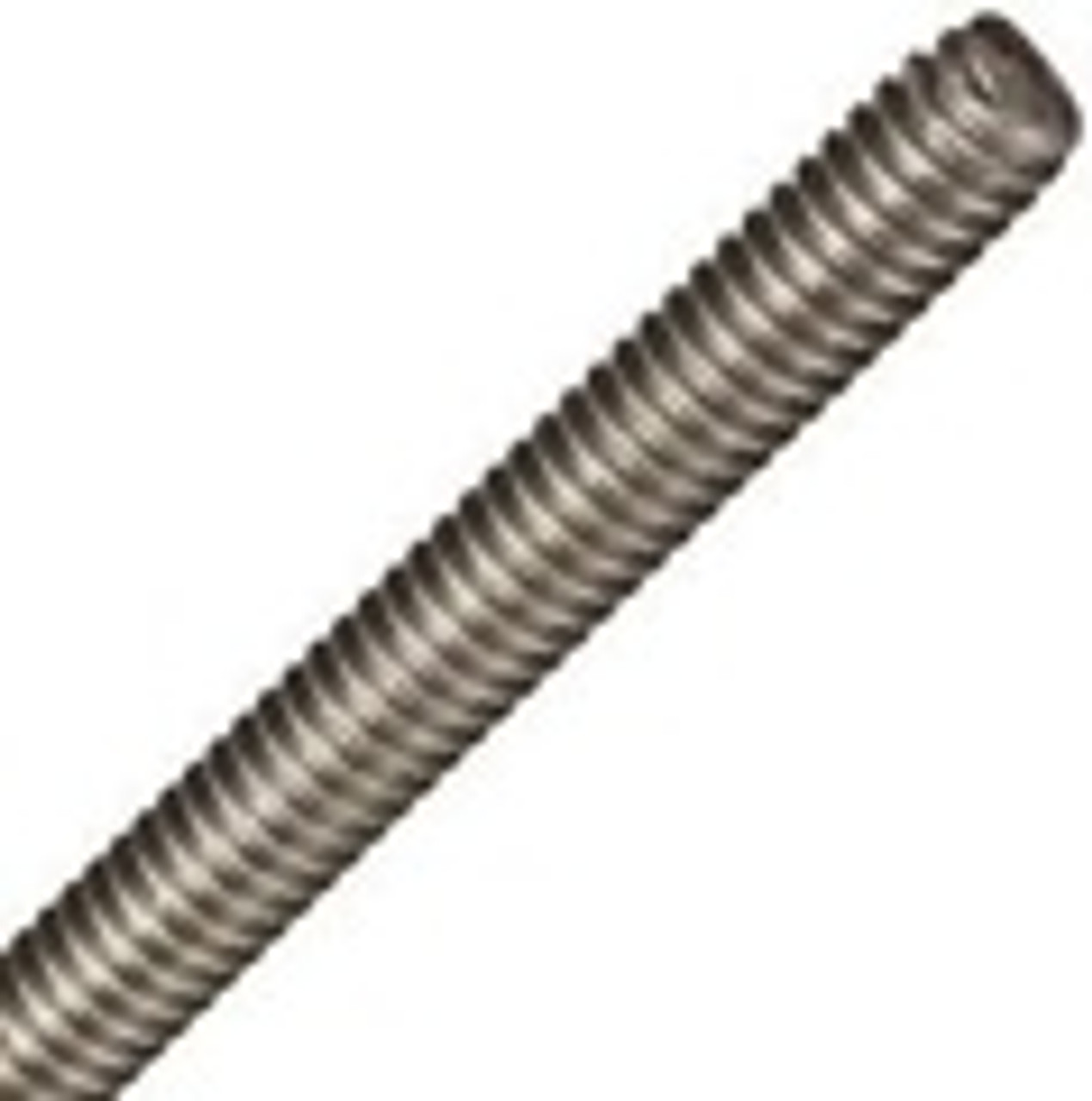

Threaded Rod Low Carbon Steel (SAE) Fine Thread

Fine thread (SAE) threaded rod in low carbon steel, 3 ft. long, with 60,000 psi tensile strength. Fine thread gives finer adjustment and better holding under vibration. Sizes #10-32 to 1/2"-20 are zinc plated. Sizes 5/8"-18 to 1-1/2"-12 are plain finish.

Specifications

  • Length: 3 ft. (36 in.)
  • Material: low carbon steel
  • Finish: zinc plated (#10-32 to 1/2"-20), plain (5/8"-18 and up)
  • Tensile strength: 60,000 psi
  • Sizes: 10-32, 1/4"-28, 5/16"-24, 3/8"-24, 7/16"-20, 1/2"-20, 5/8"-18, 3/4"-16, 7/8"-14, 1"-14, 1-1/8"-12, 1-1/2"-12

Common Uses

  • Adjusting rods and linkages
  • Machinery and automotive work
  • Studs where fine thread is specified

FAQ

What is the difference between coarse (USS) and fine (SAE) thread?
Coarse thread (UNC) has fewer threads per inch, goes together faster and is less likely to cross-thread. Fine thread (UNF) has more threads per inch, gives finer adjustment and holds better under vibration. The nut must match the rod's thread.

Can I cut threaded rod to length?
Yes. Thread a nut on first, cut with a hacksaw, band saw or cut-off wheel, then file the end and back the nut off. Backing the nut off cleans up the first threads at the cut.

Related: Grade 2 Hex Nuts SAE | Rod Coupling Nuts SAE | Plain Steel Threaded Rod

Note: Threaded rod does not qualify for $10.95 flat fee shipping or free shipping. 10' and 12' threaded rods ship by motor freight, F.O.B. Milford, CT 06460.
