EZ-Lok Brass Wood Inserts - (SAE) Fine Thread

E-Z Lok Brass Wood Inserts - SAE Fine Thread

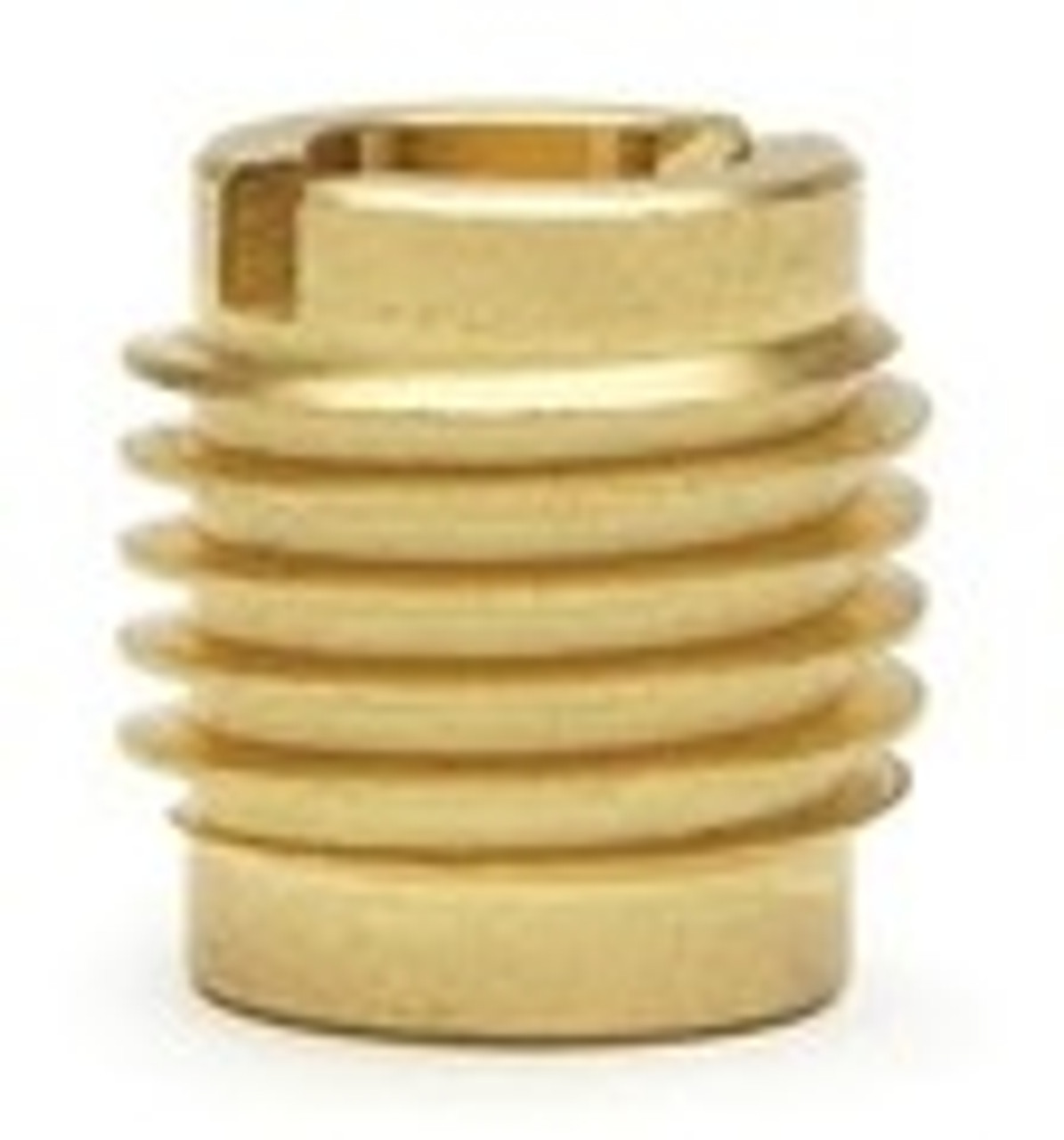

E-Z Lok solid brass threaded inserts for wood with SAE Fine internal thread. We stock 10-32, 1/4-28, 5/16-24, 3/8-24. They create strong, reusable machine threads in hardwood, softwood, plywood and MDF. Installation steps and the hole size chart are below.


Specifications

  • Brand: E-Z Lok
  • Material: solid brass
  • Internal thread: SAE Fine
  • Sizes: 10-32, 1/4-28, 5/16-24, 3/8-24
  • Install 1/16" to 1/8" below the surface

Installation

             ezw1.jpg ezw2.jpg ezw3.jpg

Drill hole using size chart below.

Thread insert into hole using a screw driver or a bolt. Install 1/16” to 1/8” below surface for optimum pull out strength.

Position the attaching part and install a bolt or screw.


Brass EZ-Lok Wood Inserts – Fine (SAE) Thread - Technical Data

Stock #

Thread Size

Length

Hole Size

Minimum Depth

EZW1032

10-32

.500

.375

.531

EZW1428

1/4-28

.500

.375

.531

EZW51624

5/16-24

.625

.500

.656

EZW3824

3/8-24

.625

.500

.656


Common Uses

  • Knock down furniture
  • Jigs and fixtures
  • Cabinets and speaker boxes
  • Removable panels

FAQ

How do I install an E-Z Lok wood insert?
Drill the hole size shown in the chart, thread the insert in with a screwdriver or a bolt and jam nut, and set it 1/16" to 1/8" below the surface for the best pull out strength.

Can I use a bolt to install them?
Yes. Thread a bolt and jam nut into the insert, drive it in with a wrench, then remove the bolt. Keep the insert straight as it starts.

What is the difference between USS coarse and SAE fine thread?
Coarse (USS/UNC) thread has fewer threads per inch, such as 1/4-20, and is the most common. Fine (SAE/UNF) thread has more threads per inch, such as 1/4-28. A nut must match both the diameter and the thread count of the bolt or rod.
