3/8-16 x 3/4 Grade 5 Serrated Hex Flange Bolt - Zinc Plated (FT)
SKU: 5SHF381634
-
-
3/8-16 x 1-1/4 Grade 5 Serrated Hex Flange Bolt - Zinc Plated (FT)
SKU: 5SHF3816114
-
3/8-16 x 1-1/2 Grade 5 Serrated Hex Flange Bolt - Zinc Plated (FT)
SKU: 5SHF3816112
3/8-16 Grade 5 Serrated Hex Flange Bolt
3/8-16 Grade 5 Serrated Hex Flange Bolt

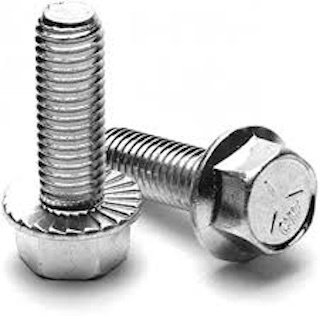

3/8-16 Grade 5 serrated hex flange bolts, zinc plated and fully threaded, in 3/4", 1", 1-1/4", 1-1/2" lengths. The serrated flange resists vibration loosening and replaces a washer and lock washer.
Specifications
- Size: 3/8-16 (USS coarse)
- Lengths: 3/4", 1", 1-1/4", 1-1/2"
- Grade: Grade 5
- Head: serrated hex flange
- Finish: zinc plated
Common Uses
- Vibrating equipment
- Automotive and truck panels
- Brackets and covers
FAQ
What nut goes with a 3/8-16 serrated flange bolt?
A 3/8-16 serrated flange lock nut gives the same anti-loosening grip on the nut side.
Do flange bolts need a washer?
No. The built-in flange spreads the load like a washer, so one part does the job of two and speeds up assembly.
