Phillips Wafer Head Self Drilling Screws - Plated

Phillips Wafer Head Self Drilling Screws - Plated

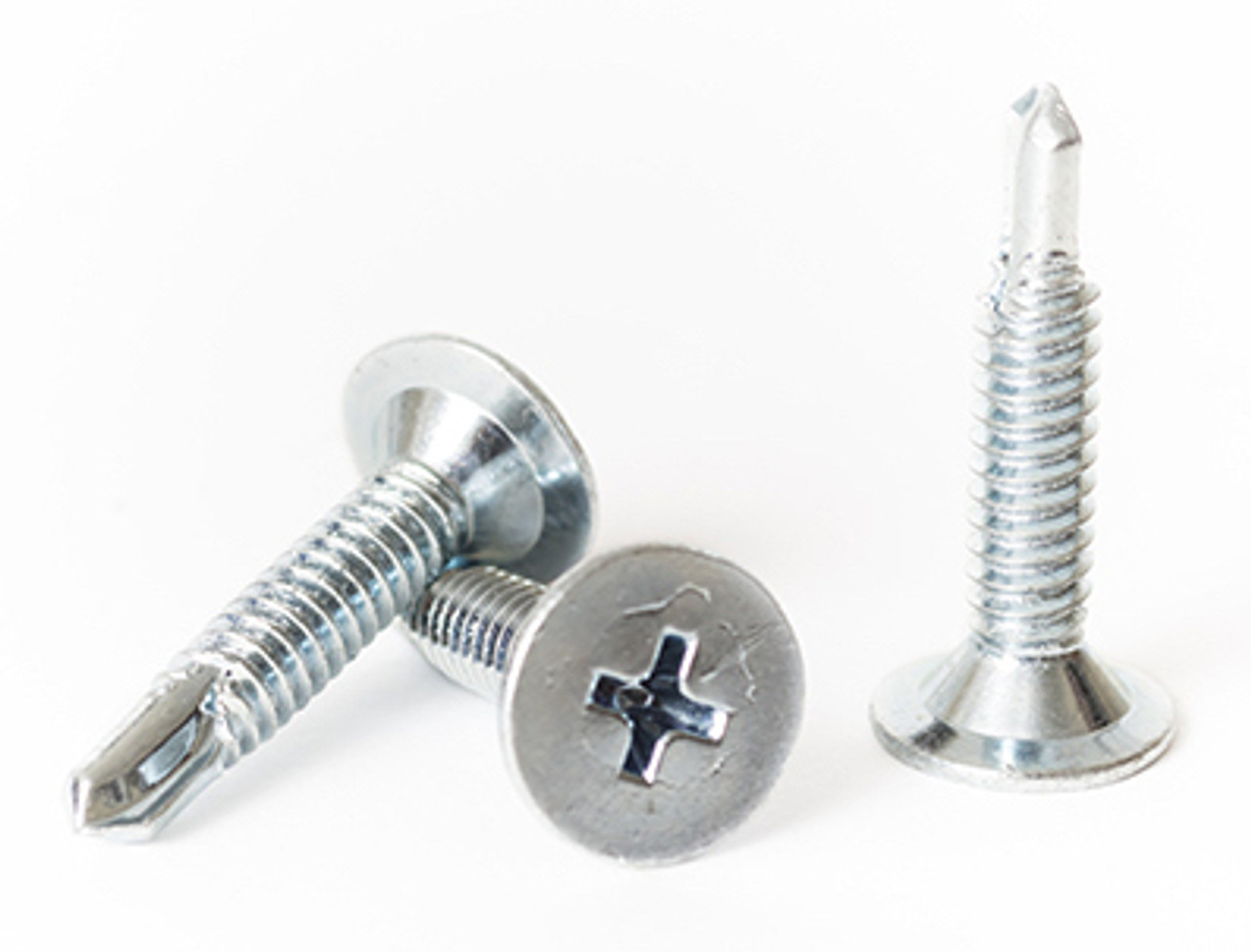

10-24 Phillips wafer head self drilling screws in zinc plated steel, in 3/4", 1" and 1-1/2" lengths. They fasten plywood or composite board to light and medium gauge steel. The large, thin wafer head sits flush and resists pull-through. #2 Phillips drive, #3 point, drills .035" to .176" steel. The table below shows the wood thickness each length fits.

Phillips Wafer Head Self Drilling Screws - Plated | The Nutty Company, Inc.

Phillips Wafer Head Self Drilling Screws Data Sheet (PDF) - The Nutty Company

Specifications

  • Size: 10-24
  • Head: Phillips wafer, #2 Phillips drive
  • Point: #3, drilling capacity .035" to .176"
  • Lengths: 3/4", 1", 1-1/2"
  • Material: steel, zinc plated

Dimensions

Size Wood Thickness
10-24 x 3/4 1/4” – 3/8”
10-24 x 1 1/4” – 1/2”
10-24 x 1-1/4 1/4” – 3/4”
10-24 x 1-1/2 1/4” – 1”
10-24 x 2 1/4” – 1-1/2”
10-24 x 2-1/2 1/4” – 2”
10-24 x 3 1/4” – 2-1/2”

Common Uses

  • Plywood subfloor to steel joists
  • Composite board to metal framing
  • Trailer and truck floors

FAQ

Why a wafer head?
The large, thin head sits nearly flush with the wood and spreads the load, so the screw won't pull through plywood or composite board.

What is a self drilling (Tek) screw?
A self drilling screw has a drill bit point, so it drills, taps and fastens in one step with no pilot hole. The point number tells you how thick a metal it can drill: the higher the number, the thicker the metal.
