470 pc. Button Socket Cap Screw ~ Alloy Steel
SKU: KABSC470
$78.950each

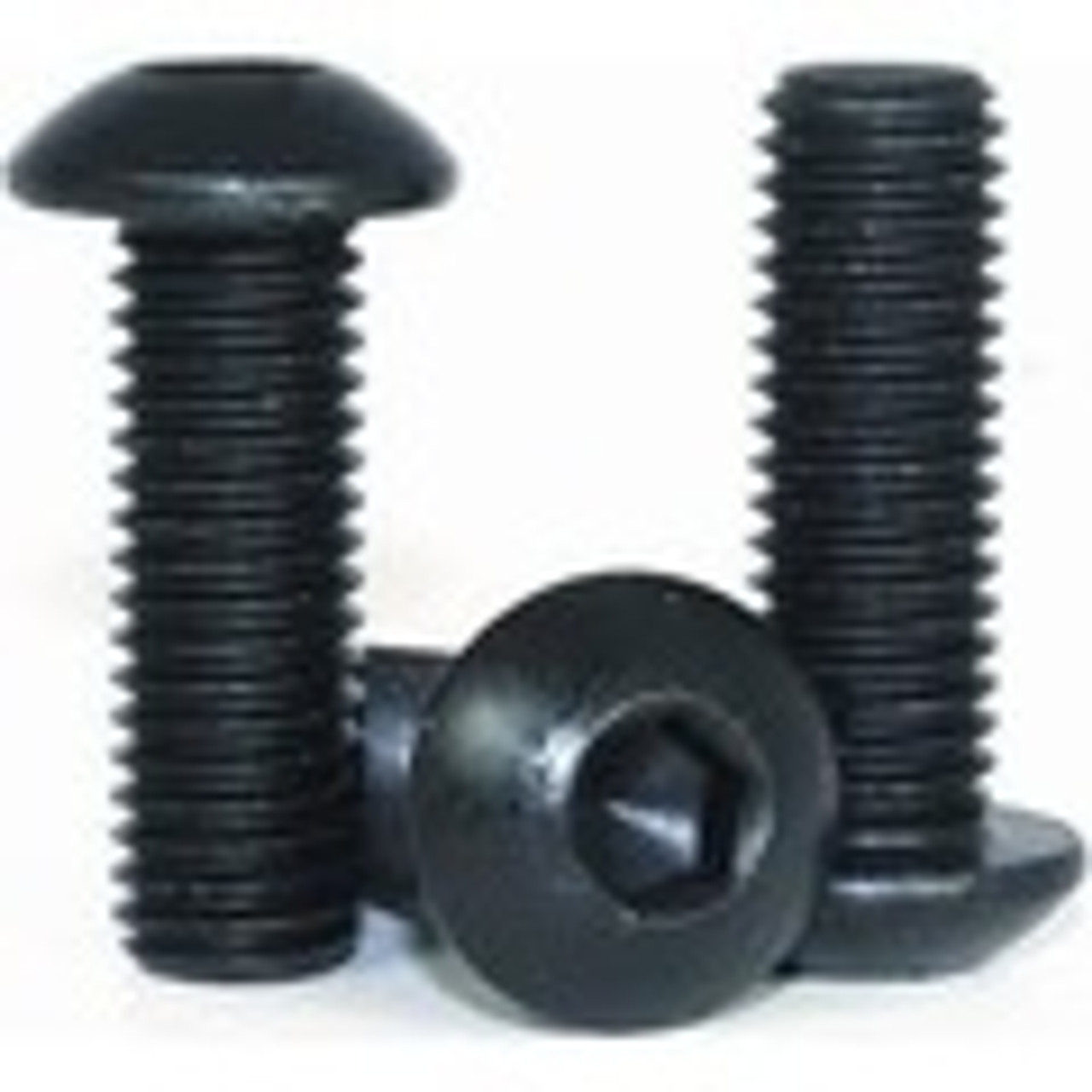

Button Head Socket Cap Screw - (SAE) Fine Thread

Button Head Socket Cap Screw - (SAE) Fine Thread
Alloy steel button head socket cap screws in SAE fine (UNF) thread, from #10-32 to 1/2"-20, in lengths from 1/8" to 2", with a black oxide finish. A low, rounded head with a hex socket in fine thread, for a clean look and light to medium loads. Fully threaded. Choose a size below.
Specifications
- Material: heat treated alloy steel, ASTM F835
- Finish: black oxide
- Thread: SAE fine (UNF)
- Drive: hex socket (Allen)
- Sizes: #10-32, 1/4"-28, 5/16"-24, 3/8"-24, 1/2"-20
- Lengths: 1/8" to 2"
- Head: low profile button
- Dimensions: ASME B18.3

Fine Thread Button Head Socket Caps Screws are manufactured from Alloy Steel with Black Oxide Finish.
Common Uses
- Machine guards and covers
- Panels, enclosures and fixtures
- Places where a low, smooth head is needed
FAQ
Are button head socket screws as strong as socket head cap screws?
No. Button and flat head socket cap screws are made to ASTM F835, with a minimum tensile strength of 145,000 psi in 1/2" and smaller and 135,000 psi over 1/2". Their smaller socket also takes less torque, so use a socket head cap screw for high loads.
Socket head, button head or flat head?
Socket head cap screws are the strongest and fit a counterbored hole. Button heads have a low, rounded head for a clean look but carry lighter loads. Flat heads have an 82 degree countersunk head that sits flush in a countersunk hole.
Will black oxide socket screws rust?
Black oxide is a thin conversion finish with a light oil. It gives mild rust protection indoors and a clean dark look, but it is not made for outdoor or wet use. For outdoor, wet or washdown areas, use our stainless steel socket screws.
