Flat Head Socket Cap Screws - (SAE) Fine Thread

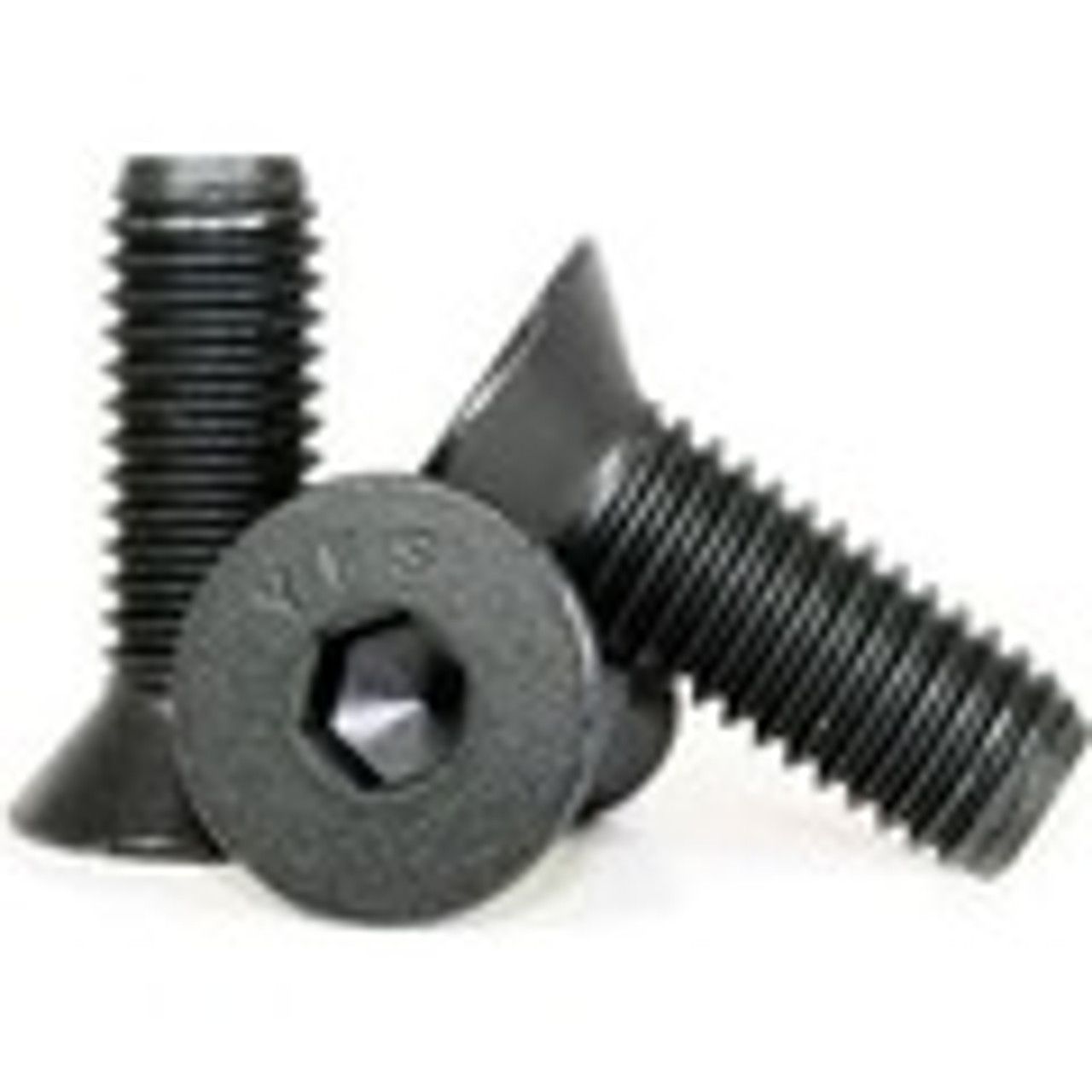

Alloy steel flat head socket cap screws in SAE fine (UNF) thread, from #6-40 to 3/4"-16, in lengths from 1/4" to 4", with a black oxide finish. An 82 degree countersunk head with a hex socket, in fine thread, that sits flush in a countersunk hole. Choose a size below.

Specifications

  • Material: heat treated alloy steel, ASTM F835
  • Finish: black oxide
  • Thread: SAE fine (UNF)
  • Drive: hex socket (Allen)
  • Sizes: #6-40, #10-32, 1/4"-28, 5/16"-24, 3/8"-24, 7/16"-20, 1/2"-20, 5/8"-18, 3/4"-16
  • Lengths: 1/4" to 4"
  • Head: 82° countersunk
  • Dimensions: ASME B18.3
Flat Head Socket Caps Screws are manufactured from Alloy Steel. These fine thread screws have a countersunk head and a Black Oxide finish.

Common Uses

  • Flush mounting in countersunk holes
  • Machine guards, plates and slides
  • Fixtures and tooling

FAQ

Are button head socket screws as strong as socket head cap screws?
No. Button and flat head socket cap screws are made to ASTM F835, with a minimum tensile strength of 145,000 psi in 1/2" and smaller and 135,000 psi over 1/2". Their smaller socket also takes less torque, so use a socket head cap screw for high loads.

What countersink angle do flat head socket screws need?
82 degrees, the standard for inch flat head screws. Flat head socket cap screws are measured overall, including the head.

Will black oxide socket screws rust?
Black oxide is a thin conversion finish with a light oil. It gives mild rust protection indoors and a clean dark look, but it is not made for outdoor or wet use. For outdoor, wet or washdown areas, use our stainless steel socket screws.
