Steel Ribbed Rivet Nuts - Metric Sizs

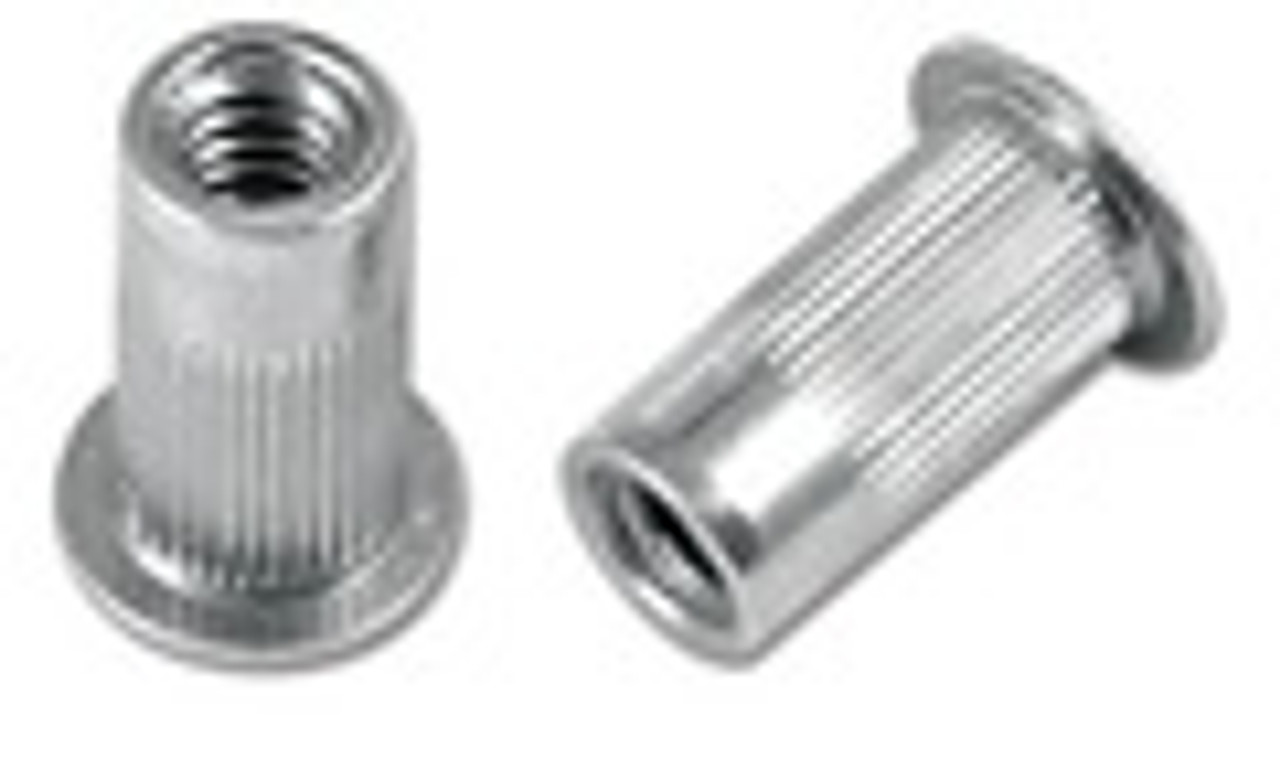

Metric Steel Flange Ribbed Rivet Nut feature ribbed external body for increased torque out resistance vs conventional rivet nut. Large flange offers improved push out performance. Overall offers the best/highest strength levels. May install with all pneumatic and manual Rivet Nut tools.  Also available in Aluminum.

Dimensions below are in millimeters



Thread Size

Grip

min.-max.



Part #

(A)

Body Length

(B)

Head Diameter

(C)

Head Height

(D)

Body Diameter



Hole Size

M4x.07

.5 - 2.0

SRRNM4S

10.67

9.91

.76

6.73

6.75

M4x.07

2.0 - 3.3

SRRNM4L

11.94

9.91

.76

6.73

6.75

M5x0.8

.5 - 3.3

SRRNM5S

12.07

10.54

.76

7.52

7.6

M5x0.8

3.3 - 5.7

SRRNM5L

14.86

10.54

.76

7.52

7.6

M6x1.0

.7 - 4.2

SRRNM6S

14.73

12.7

.76

9.91

10.0

M6x1.0

4.2 - 6.6

SRRNM6L

17.27

12.7

.76

9.91

10.0

M8x1.25

.7 - 3.8

SRRNM8S

17.53

17.4

.89

13.46

13.5

M8x1.25

3.8 - 7.9

SRRNM8L

20.45

17.4

.89

13.46

13.5

M10x1.5

.7 - 3.8

SRRNM10S

17.53

17.4

.89

13.46

13.5

M10x1.5

3.8 - 7.9

SRRNM10L

20.45

17.4

.89

13.46

13.5

Showing 1 - 6 of 6
