Hitch Pins, Shaft Collars & Key Stock

The Nutty Company stocks the pins, clips and drive-line parts that keep farm, towing and power equipment connected: Grade 5 heat treated hitch pins (plow pins), hitch pins with chain or lanyard, bent pins, lynch pins, R-clips (hitch pin clips), square wire PTO lock pins, set screw shaft collars and 12" square key stock. They are made for tractors, three-point hitches, trailers, mowers, implements and machinery, and most sizes ship the same day.

Which Pin or Part Do I Need?

  • Grade 5 Hitch Pins (Plow Pins): heat treated Grade 5 steel for drawbars, clevises and implement hitches, in standard and red handle styles from 1/2" to 1-1/4" diameter. Secure them with an R-clip.

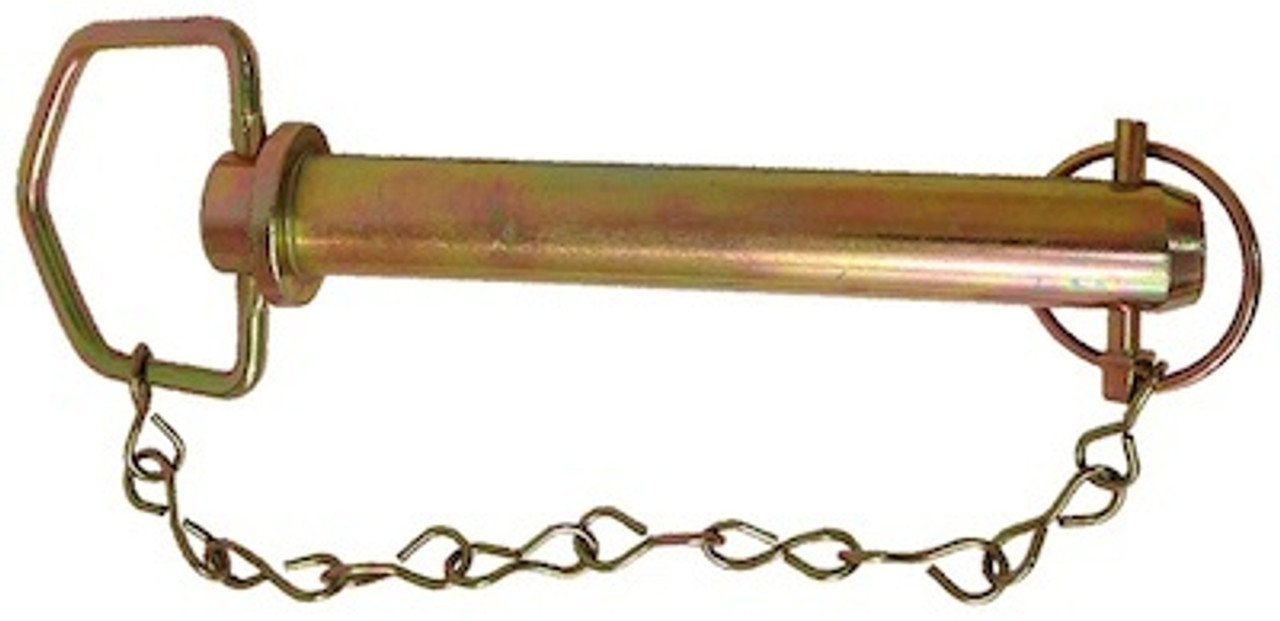

  • Hitch Pins with Chain or Lanyard: the retaining clip or lynch pin is attached with a chain or lanyard, so it doesn't get lost. Lanyard style hitch pins are Made in USA.
  • Bent Pins: a one-piece pin with a bent handle for quick hand removal, in 3/8" to 5/8" diameter, yellow zinc plated.
  • Lynch Pins: a spring ring snaps over the end of a shaft or axle to lock a wheel or pin in place, 3/16" to 7/16".
  • R Pins (Hitch Pin Clips): spring wire clips that go through the cross hole of a hitch pin or clevis pin to keep it from backing out.
  • Square Wire PTO Lock Pins: square wire lock pins that hold PTO shafts, yokes and implement pins in place, 1/4" to 3/8".
  • Shaft Collars: set screw shaft collars from 1/4" to 1-1/2" inside diameter to locate and hold bearings, sprockets and pulleys on a shaft. Yellow zinc plated.
  • Square Key Stock 12": 12" bars of square key stock from 1/8" to 1", cut to length for keyways in shafts, pulleys, sprockets and gears.

Safety Tips

  • Always lock a hitch pin with an R-clip, lynch pin or wire lock pin so it can't bounce out.
  • Use a pin that fits the hole snugly; a loose pin wears the hole and the pin.
  • Replace pins that are bent, worn, cracked or grooved, and clips that have lost their spring.
  • Use safety chains when towing on the road.

Data Sheets

More specifications are on our Fastener Technical Data page.

FAQ

How do I measure a hitch pin?
Measure the pin diameter, then the usable length: from under the head (or handle) to the center of the clip hole. The usable length must be longer than the total thickness of the drawbar and clevis or hitch it passes through.

What size R-clip do I need?
Match the R-clip to the diameter of the pin it goes on. The straight leg goes through the cross hole in the pin, and the curved leg rides along the outside of the pin to hold it in place. A clip that is too small won't reach around the pin; one that is too large can fall out.

What grade are your hitch pins?
Our hitch (plow) pins are Grade 5 heat treated medium carbon steel, much stronger than plain mild steel pins. Always choose a pin diameter that fits snugly in the hole and is rated for the towing load.

Hitch pin with chain or without?
A pin with a chain or lanyard keeps the clip or lynch pin attached, so it can't be dropped or lost in the field. It's a good choice for equipment that is hooked up and unhooked often.

How are shaft collars sized?
Shaft collars are listed by inside diameter (the shaft size) x outside diameter. Choose the inside diameter to match your shaft exactly, then tighten the set screw onto the shaft.

Can I cut square key stock?
Yes. Our key stock comes in 12" lengths and can be cut with a hacksaw or band saw to fit your keyway. Deburr the cut ends before installing.
