10-24 x 5/16 Barrel Bolt Screw- Plated
SKU: BBS1024
$0.103each -
10-24 x 1/2 Barrel Bolt - Plated
SKU: BB102412
$0.540each -
10-24 x 3/4 Barrel Bolt - Plated
SKU: BB102434
$0.581each -
10-24 x 1 Barrel Bolt - Plated
SKU: BB10241
$0.638each

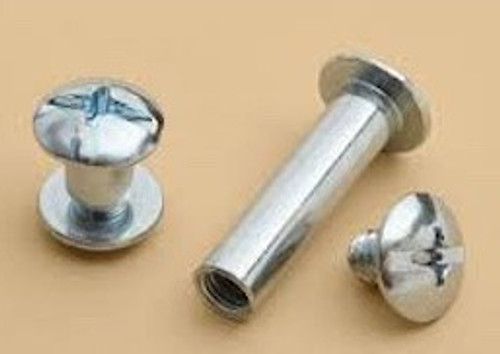

10-24 Barrel Bolt - Plated Steel

10-24 Barrel Bolt - Plated Steel
10-24 barrel bolts (sex bolts, Chicago screws) in zinc plated steel. Barrels in 1/2", 3/4", 1" lengths and the matching 5/16" screw, for 17/64" holes. Barrel and screw are sold separately.
Specifications
- Thread: 10-24
- Barrel lengths: 1/2", 3/4", 1"
- Screw: 5/16" long
- Hole size: 17/64"
- Material: zinc plated steel
Steel Barrel Bolts & Screws 10-24
Low profile, matching head on both the bolt and screw allow for a nice clean look. Zinc plated steel is much stronger than common aluminum binder posts. Each barrel bolt assembly consists of one bolt and one screw. Binding capacity is determined by length of barrel bolt used. Otherwise known as Sex Bolts or Chicago Screws.
- Barrel bolt and screw sold separately
- Female bolts are .250" dia. x .438" head O.D. – Slotted/Phillips combination
- Male screws are 10-24 thread dia. x .438" head O.D. x 5/16" long – Slotted/Phillips combination
- For use in 17/64" holes
- Additional lengths available upon request
- Zinc plated steel material
Common Uses
- Binding books and swatch books
- Leather goods and belts
- Signs and displays
FAQ
Which barrel length do I need?
Pick a barrel a little shorter than the total thickness you are binding, so the screw has room to thread in and pull the stack tight.
Are the barrel and screw sold together?
No. Order one barrel and one screw for each assembly.
