Shaft Collars

Inside Diameter x Outside Diameter
with Set Screw

Yellow Zinc Plated

Set Screw Shaft Collars

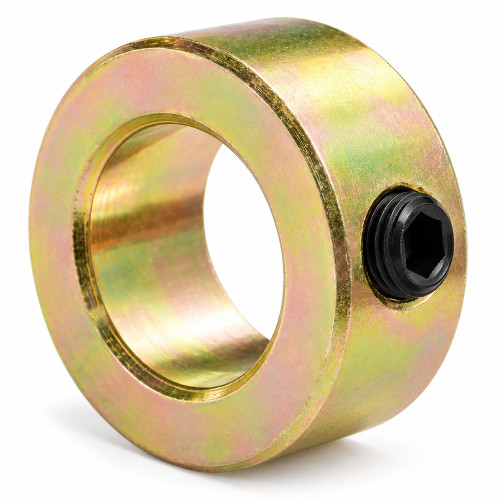

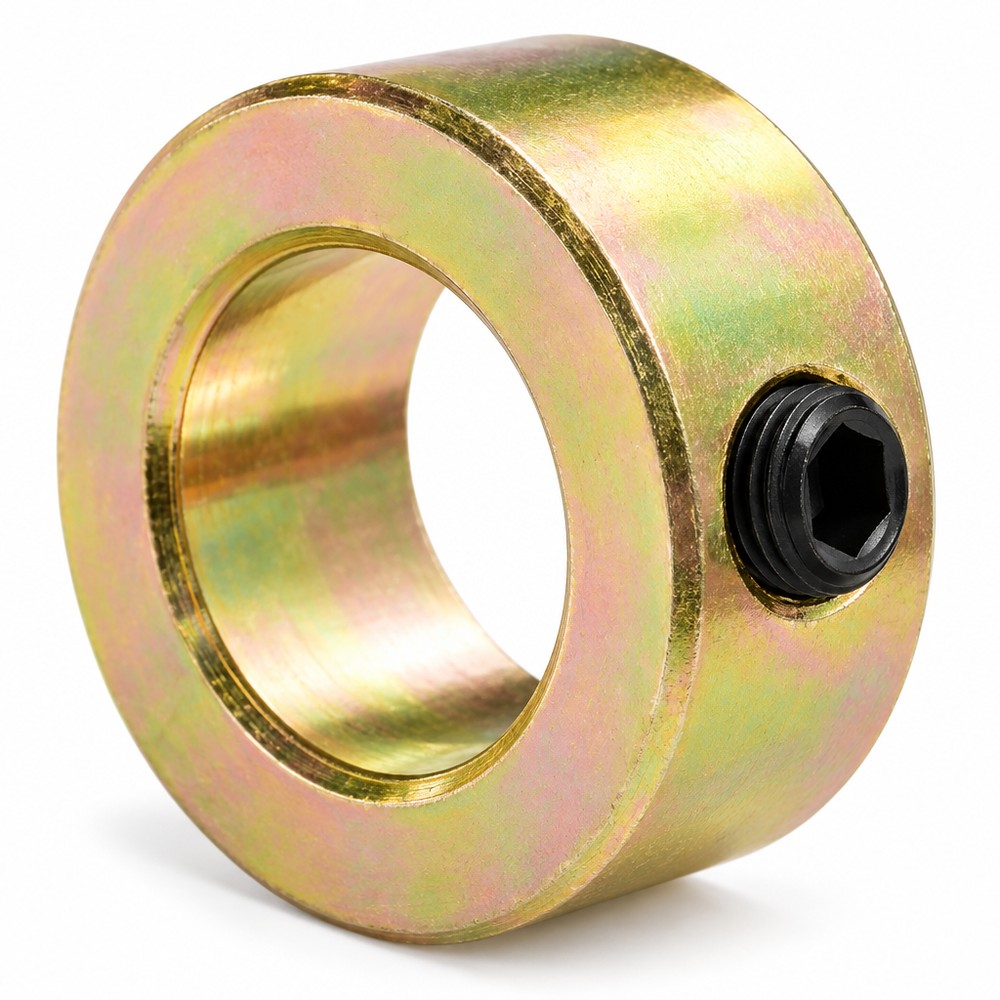

Solid steel set screw shaft collars, yellow zinc plated, for shafts from 1/4" to 1-1/2". Each collar comes with a cup point socket set screw installed. Slide the collar onto the shaft and tighten the set screw to lock it in place.

Specifications

• Bore sizes: 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2"
• Sizes listed as inside diameter x outside diameter
• Material: AISI 1010-1020 low carbon steel
• Finish: yellow zinc plated
• Set screw: black oxide socket set screw, cup point, installed

Common Uses

• Stops and spacers on shafts and axles
• Holding gears, pulleys, sprockets and bearings in position
• Farm, lawn and garden equipment
• Carts, conveyors and machinery repair

FAQ

What is a set screw shaft collar?
A solid steel ring that fits over a round shaft. A set screw threaded through the side of the collar presses against the shaft to hold the collar in place and stop parts from sliding along the shaft.

How do I choose the right size?
Match the first number (inside diameter) to your shaft diameter. For example, a 1/2" x 1" collar fits a 1/2" shaft and is 1" across the outside.

What tool tightens the set screw?
A hex (Allen) key: 3/32" for 1/4" and 5/16" collars, 1/8" for 3/8" to 9/16", 5/32" for 5/8" to 1", and 3/16" for 1-1/8" to 1-1/2". See the data sheet for full dimensions.
