5/16" Forged Galvanized Eye Bolt


5/16" Forged Galvanized Eye Bolt

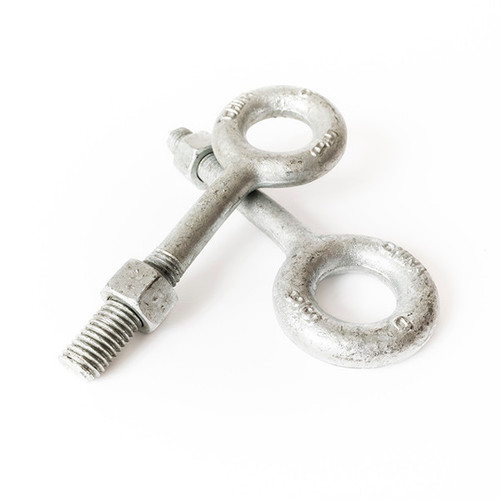

These 5/16"-18 forged galvanized eye bolts are drop forged steel, hot dip galvanized, and come with a galvanized hex nut. Each one is rated for a 800 lb working load limit for straight, in-line pull. Shank lengths: 2-1/4", 3-1/4" and 4-1/4". The full dimensions for each part number are in the table below.


Galvanized Hex Nut included

Part #

Diameter (A) & Shank Length (B)

Outside Eye (C)

Inside Eye (D)

Overall Length (E)

Thread Length (T)

Working Load Limit

(Lbs.)

5:1 Safety

GEB516214

5/16" x 2-1/4"

1-1/4"

5/8"

3-1/2"

1-1/2"

800

GEB516314

5/16" x 3-1/4"

1-1/4"

5/8"

4-1/2"

1-1/2"

800

GEB516414

5/16" x 4-1/4"

1-1/4"

5/8"

5-1/2"

2-1/2"

800

Common Uses

  • Light rigging, gates and cable runs
  • Outdoor and marine rigging
  • Through-bolted anchor points in wood or steel

FAQ

What is the working load limit of a 5/16" forged eye bolt?
800 lb for in-line pull, with a 5:1 safety factor. Do not load it at an angle.

Which length 5/16" eye bolt do I need?
Pick a shank long enough to pass through the material with room for the washer and nut, plus a couple of threads past the nut. Thread lengths are in the table.
