EZ-Lok Brass Finserts for Plastic


E-Z Finserts provide strong, metal threads in soft woods, like pine, composition board, and MDF. E-Z Fin also work in thermoplastics such as nylon, polystyrene, cellulose acetate and cycolac. Firm, permanent fastening is achieved by distributing stress over a greater surface area, minimizing the possibility of splintering, splitting, and thread erosion.

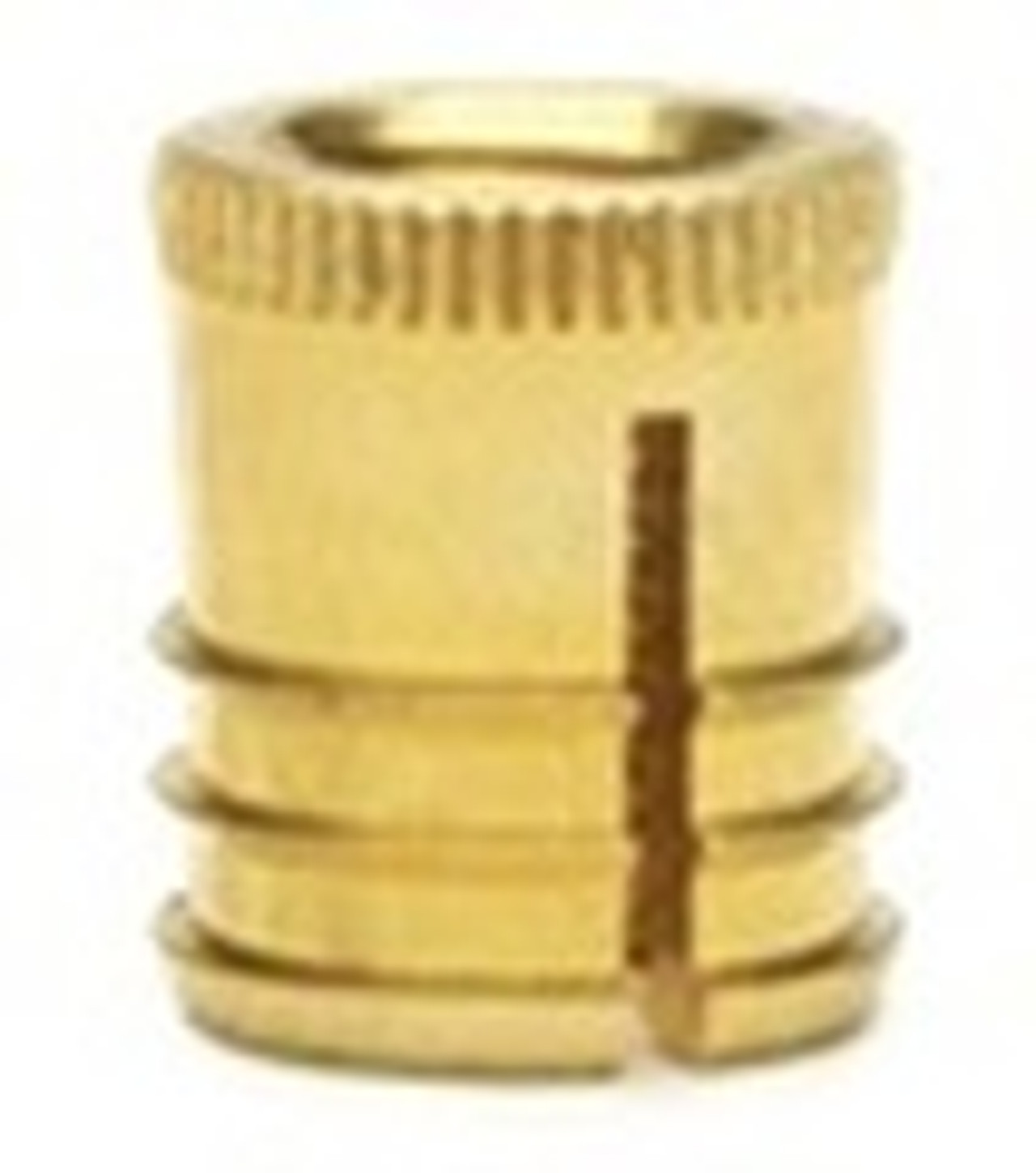

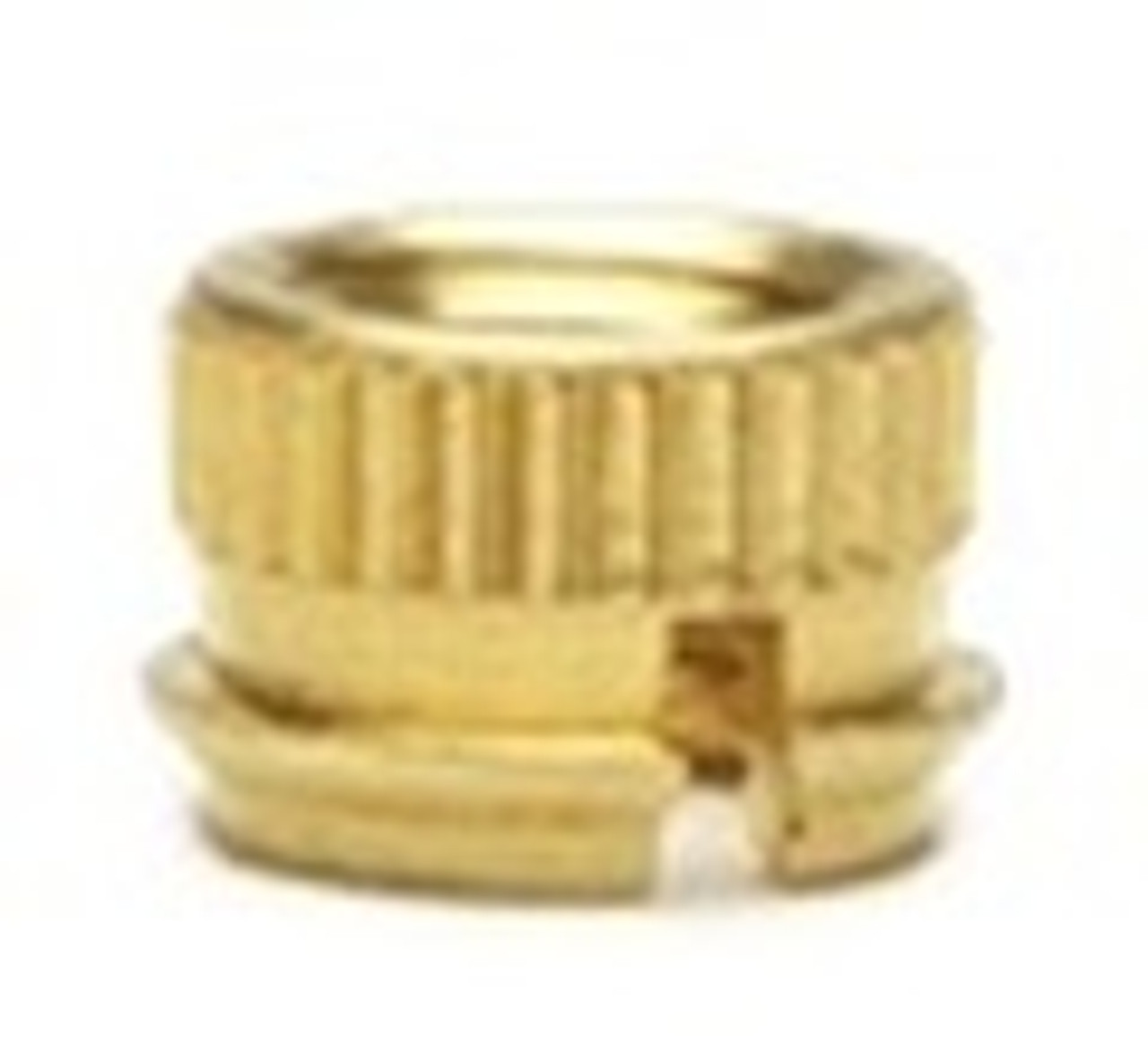

Machined out of brass, E-Z Finserts are available in single, double or triple fin designs for varying material thicknesses. Internal threads sizes range from #6 to 5/16.

 ezfin1.jpg  ezfin2.jpg  ezfin3.jpg

FIN170

FIN270

FIN370



Stk #

Thread Size

A

B

C

Hole Size

EZF170632

6-32

.210

.237

.189

.205 (#5)

EZF170832

8-32

.236

.263

.215

.234 (15/64)

EZF1701032

10-32

.263

.290

.242

.261 (G)

EZF270632

6-32

.210

.237

.189

.205 (#5)

EZF270832

8-32

.236

.263

.215

.234 (15/64)

EZF2701032

10-32

.263

.290

.242

.261 (G)

EZF2701024

10-24

.263

.290

.242

.261 (G)

EZF2701420

1/4-20

.330

.357

.309

.328 (21/64)

EZF3701032

10-32

.347

.368

.318

.344 (11/32)

EZF3701420

1/4-20

.409

.431

.381

.406 (13/32)

EZF37051618

5/16-18

.471

.493

.443

.469 (15/32)
