1/4" Galvanized Shouldered Eye Bolt

1/4" Galvanized Shouldered Eye Bolt

These 1/4"-20 galvanized shouldered eye bolts are drop forged steel, hot dip galvanized, and come with a galvanized hex nut. The forged shoulder under the eye lets them take angled loads at a reduced rating when the shoulder is seated flat. Working load limit: 500 lb in-line, 150 lb at 45° and 125 lb at 90°. Shank lengths in stock: 2" and 4". Full dimensions are on the Data Sheet (PDF) below.

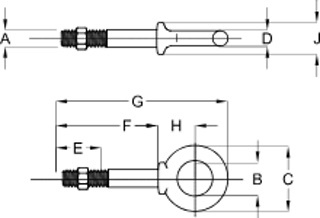

Galvanized shouldered eye bolt with hex nut  Galvanized shouldered eye bolt dimension diagram

Galvanized Shouldered Eye Bolts Data Sheet (PDF) - The Nutty Company

Galvanized Hex Nut included

Common Uses

  • Lifting and rigging points, including angled lifts
  • Outdoor and marine tie-downs
  • Through-bolted anchor points in wood or steel

FAQ

What is the working load limit of a 1/4" shouldered eye bolt?
500 lb in-line (0°), 150 lb at 45° and 125 lb at 90°, with a 5:1 design factor. The angled ratings apply only when the shoulder is seated flat and tight.

How do I install a 1/4" shouldered eye bolt?
Seat the shoulder flat and tight against the surface, then tighten the nut. If the shoulder is not in full contact, treat it as a plain eye bolt (in-line pull only).

What size hole for a 1/4" eye bolt?
Drill a 1/4" hole, or slightly larger, so the shank passes through without forcing. Full dimensions for every part number are on the Data Sheet (PDF).
