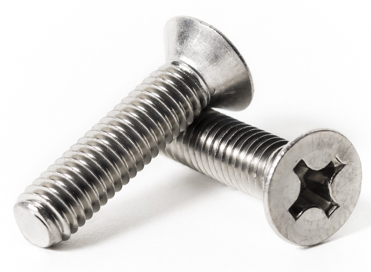

M3x0.5 Stainless Phillips Flat Head Machine Screw
M3 x 0.5 Stainless Metric Phillips Flat Head Machine Screws
M3 x 0.5 (M3x0.5) A2 stainless steel Phillips flat head machine screws, made to DIN 965, metric standard pitch. We stock 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm lengths. They take a PH1 Phillips driver.
Specifications
- Size: M3 x 0.5 (standard pitch)
- Lengths: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm
- Standard: DIN 965
- Drive: Phillips PH1
- Head: 90 degree countersunk
- Material: A2 stainless steel
- Type 316 (A4) stainless available, please contact us
Common Uses
- Electronics and enclosures
- Appliances and equipment
- Marine and outdoor fixtures
FAQ
Do machine screws need a nut?
They go into a tapped hole or take a hex nut or nylon lock nut of the same size. They are not for wood or sheet metal.
How is a flat head screw measured?
Overall length, from the top of the head to the end. The 90 degree head sits flush in a countersunk hole.
What tap drill and clearance hole for M3 x 0.5?
Tap drill: 2.5mm. Clearance hole: 3.4mm (normal fit).
Related: Stainless Metric Hex Nuts | All Stainless Metric Phillips Flat Head Machine Screws
