M10 x 1.25 Hex Flange Bolts - Class 10.9 - Fine Pitch

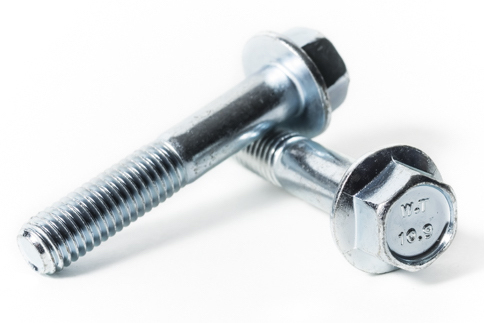

M10 x 1.25 fine pitch Class 10.9 hex flange bolts, zinc plated, made to JIS B-1189 with a 14mm wrench size. We stock lengths 20mm to 100mm, full thread (FT) and partial thread (PT).

Specifications

  • Thread: M10 x 1.25, fine pitch
  • Strength: Class 10.9
  • Standard: JIS B-1189
  • Lengths: 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm
  • Finish: zinc plated
  • Wrench size: 14mm

Fine Pitch ~ JIS B-1189

Wrench Size = 14mm
(FT) = Full Thread
(PT) = Partial Thread

Metric Hex Flange 10.9 | The Nutty Company, Inc. Metric Hex Flange 10.9 | The Nutty Company, Inc.

Common Uses

  • Japanese car and motorcycle repair
  • Suspension and brake brackets
  • Fine thread machinery

FAQ

How do I tell standard from fine pitch?
Measure the distance between threads with a metric thread gauge. An M12 standard pitch thread is 1.75mm; fine pitch M12 is 1.5mm or 1.25mm. The nut must match the bolt pitch.

What nut fits M10 x 1.25?
An M10 x 1.25 fine pitch flange nut or serrated flange lock nut.
