M4 x 0.7 Hex Head 8.8 DIN 933 Full Thread

M4 x 0.7 Hex Head 8.8 DIN 933 Full Thread | The Nutty Company, Inc.

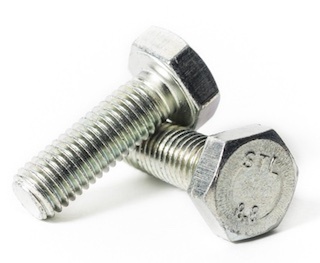

M4 x 0.7 Hex Head Cap Screws - Class 8.8 - DIN 933 Full Thread

M4 x 0.7 Class 8.8 hex head cap screws, zinc plated, made to DIN 933 with threads all the way to the head. We stock lengths 10mm to 50mm. Lengths are measured from under the head.

Specifications

Thread: M4 x 0.7, standard pitch
Strength: Class 8.8, 800 MPa (about 116,000 psi) tensile
Standard: DIN 933, full thread
Lengths: 10mm, 12mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
Finish: zinc plated
Wrench size: 7mm

Common Uses

Machinery and equipment
Car and motorcycle repair
Brackets and frames

FAQ

What is the difference between DIN 933 and DIN 931?
DIN 933 hex cap screws are threaded all the way to the head (full thread, FT). DIN 931 have a plain shank under the head and are threaded only near the end (partial thread, PT). Use partial thread where the shank passes through a hole or takes a shear load.

What nut fits an M4 x 0.7 bolt?
An M4 x 0.7 standard pitch metric hex nut, Class 8 or stronger. Use an M4 washer.

What tap drill do I use for M4 x 0.7?
3.3mm. The clearance hole for an M4 bolt is 4.5mm (medium fit).
