Grade 8 Hex Head Cap Screws - (SAE) Fine Thread

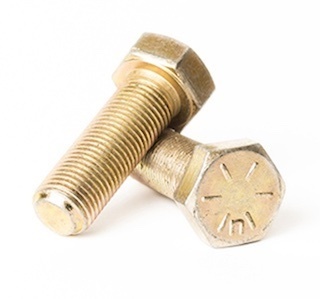

USA made Grade 8 hex head cap screws in SAE fine thread, from 1/4-28 to 1"-14 and up to 8" long, yellow zinc plated. Fine thread Grade 8 bolts are the standard for many vehicle, suspension and machinery joints. Choose a size below.

Specifications

  • Grade: SAE J429 Grade 8, 6 radial lines on the head
  • Strength: 150,000 psi min. tensile, 130,000 psi min. yield
  • Thread: SAE fine (UNF)
  • Sizes: 1/4-28, 5/16-24, 3/8-24, 7/16-20, 1/2-20, 9/16-18, 5/8-18, 3/4-16, 7/8-14, 1"-14
  • Finish: yellow zinc plated
  • Made in USA

Made in North America (USA / Canada)

The length of a cap screw is measured from the under-head bearing surface to the extreme end of the screw.
(FT)=Full Thread | (PT)=Partial Thread


Stock Photos - to verify Thread Length, goto:

Common Uses

  • Suspension, steering and drivetrain work
  • Heavy machinery
  • Fine thread tapped holes

FAQ

What do USS coarse and SAE fine thread mean?
USS (UNC) coarse thread has fewer threads per inch and is the general purpose standard; it assembles fast and is less likely to cross thread. SAE (UNF) fine thread has more threads per inch, which gives a little more strength and finer adjustment, and is common on vehicles and machinery. The nut must match the thread.

How do I know a bolt is Grade 8?
Grade 8 bolts have 6 radial lines on the head, plus the manufacturer's mark. Grade 5 has 3 lines and Grade 2 has none.

Which nut and washer go with these bolts?
Match the thread and use a nut of the same grade or higher: Grade 5 nuts with Grade 5 bolts and Grade 8 nuts with Grade 8 bolts. Hardened (Grade 8 / through-hardened) flat washers keep high strength bolts from digging into the surface.
