EZ-Lok Brass Wood Inserts - (USS) Coarse Thread

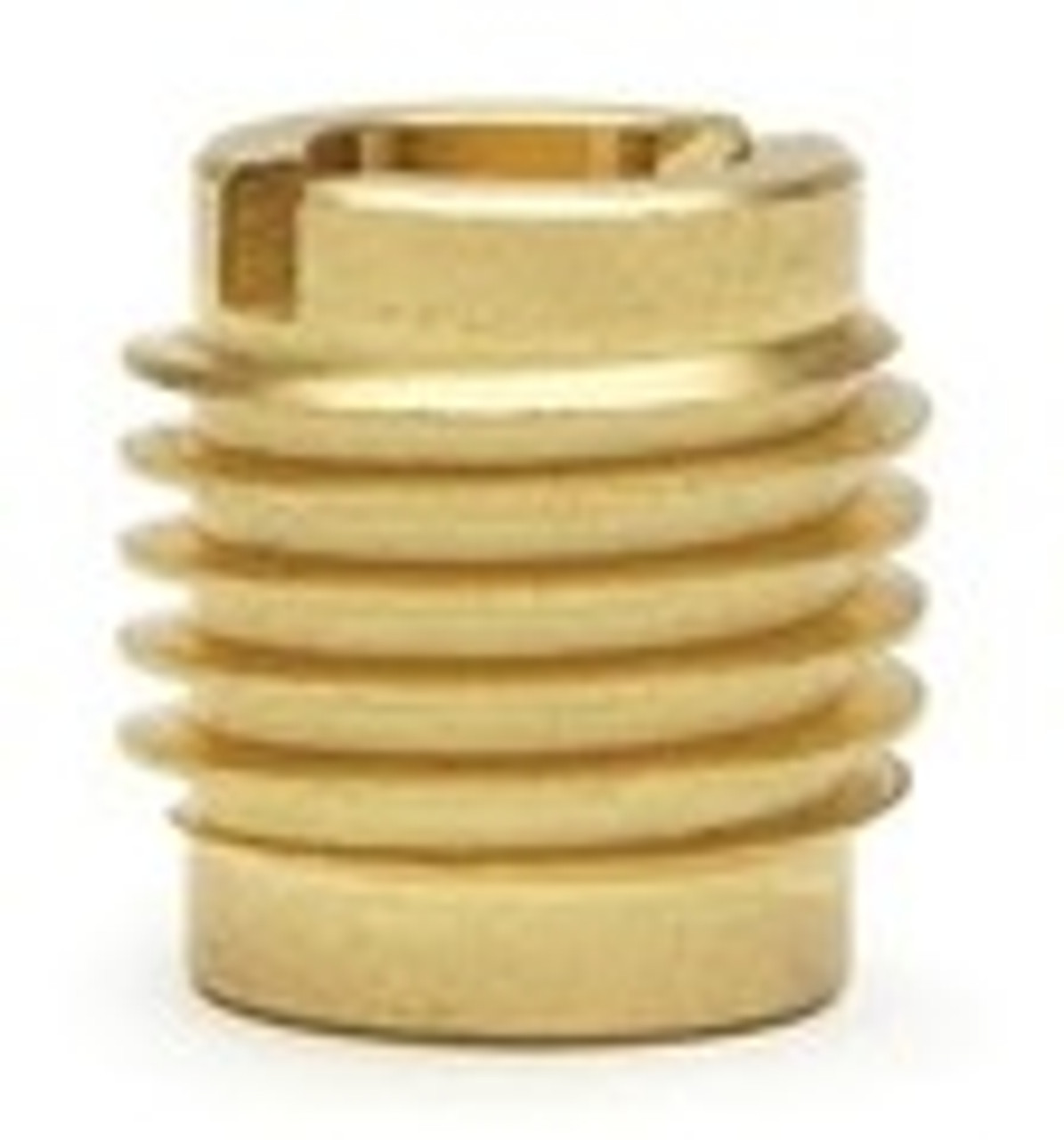

E-Z Lok Brass Wood Inserts - USS Coarse Thread

E-Z Lok solid brass threaded inserts for wood with USS Coarse internal thread. We stock 4-40, 6-32, 8-32, 10-24, 1/4-20, 5/16-18, 3/8-16. They create strong, reusable machine threads in hardwood, softwood, plywood and MDF. Installation steps and the hole size chart are below.

Specifications

• Brand: E-Z Lok
• Material: solid brass
• Internal thread: USS Coarse
• Sizes: 4-40, 6-32, 8-32, 10-24, 1/4-20, 5/16-18, 3/8-16
• Install 1/16" to 1/8" below the surface

Installation

Drill hole using size chart below.	Thread insert into hole using a screw driver or a bolt. Install 1/16” to 1/8” below surface for optimum pull out strength.	Position the attaching part and install a bolt or screw.



Stock #	Thread Size	Length	Hole Size	Minimum Depth
EZW440	4-40	.375	.250	.406
EZW632	6-32	.375	.250	.406
EZW832	8-32	.375	.250	.406
EZW1024	10-24	.500	.375	.531
EZW1420	1/4-20	.500	.375	.531
EZW51618	5/16-18	.625	.500	.656
EZW3816	3/8-16	.625	.500	.656

Common Uses

• Knock down furniture
• Jigs and fixtures
• Cabinets and speaker boxes
• Removable panels

FAQ

How do I install an E-Z Lok wood insert?
Drill the hole size shown in the chart, thread the insert in with a screwdriver or a bolt and jam nut, and set it 1/16" to 1/8" below the surface for the best pull out strength.

Can I use a bolt to install them?
Yes. Thread a bolt and jam nut into the insert, drive it in with a wrench, then remove the bolt. Keep the insert straight as it starts.

What is the difference between USS coarse and SAE fine thread?
Coarse (USS/UNC) thread has fewer threads per inch, such as 1/4-20, and is the most common. Fine (SAE/UNF) thread has more threads per inch, such as 1/4-28. A nut must match both the diameter and the thread count of the bolt or rod.
