Metric Flange Nuts - Fine Pitch

Metric Flange Nuts - Fine Pitch

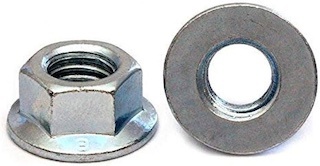

Zinc plated Class 8 fine pitch metric flange nuts made to DIN 6923, for fine thread studs and bolts. We stock M10 x 1.25, M12 x 1.25.

Specifications

• Standard: DIN 6923
• Strength: Class 8
• Sizes: M10 x 1.25, M12 x 1.25
• Finish: zinc plated

Common Uses

• Car and motorcycle parts
• Fine thread studs
• Equipment repair

FAQ

How do I tell standard from fine pitch?
Measure the distance between threads with a metric thread gauge. An M12 standard pitch thread is 1.75mm; fine pitch M12 is 1.5mm or 1.25mm. The nut must match the bolt pitch.

Do I need a washer with a flange nut?
Usually not. The flange works as a washer and spreads the load over a larger area.
