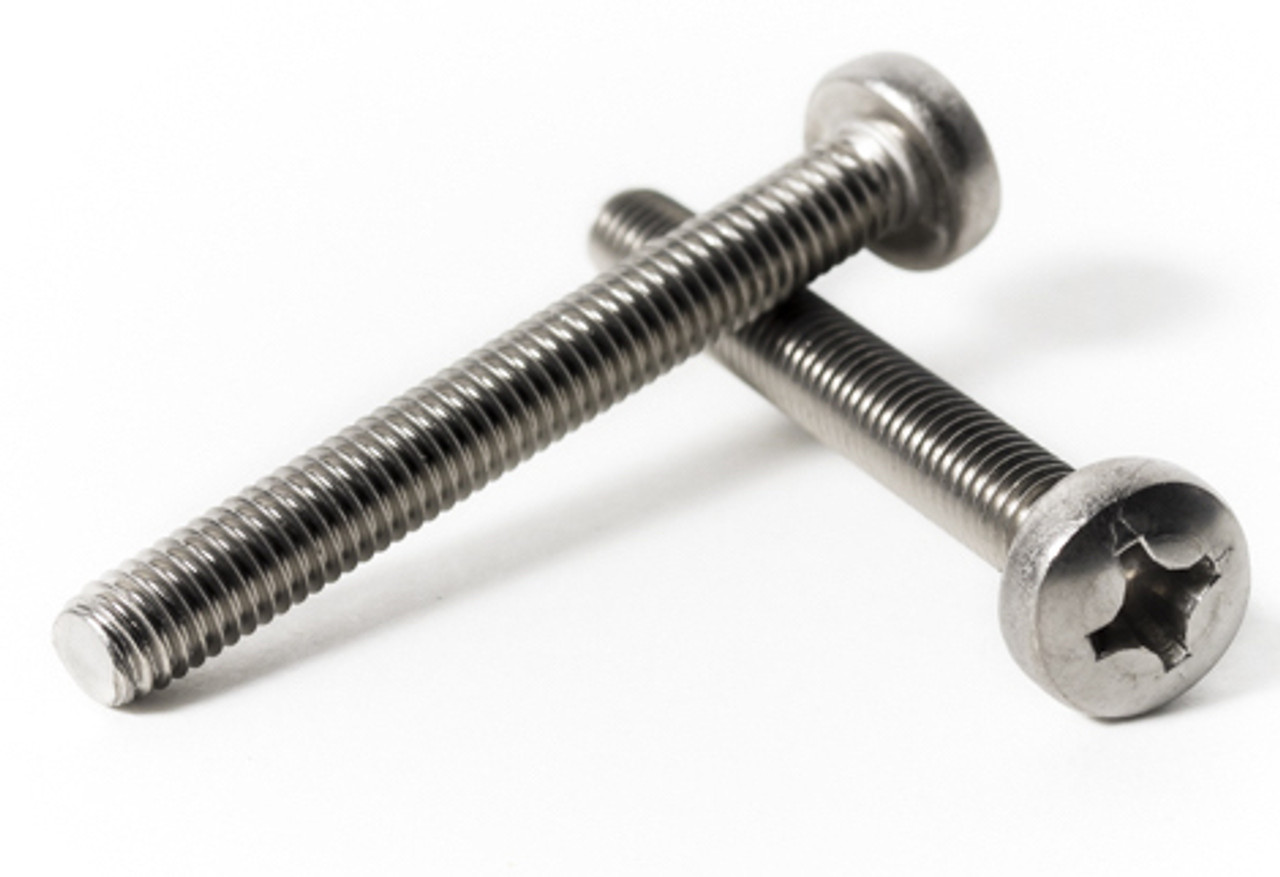

Stainless Metric Phillips Pan Head Machine Screws
A2 stainless steel metric Phillips pan head machine screws, DIN 7985, from M2 to M6: M2 x 0.4, M2.5 x 0.45, M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 1.0. The rounded pan head sits on top of the surface. Choose a size below.
Specifications
- Material: A2 stainless steel
- Standard: DIN 7985
- Drive: Phillips
- Sizes: M2 to M6, standard pitch
- Type 316 (A4) stainless available, please contact us
A2 Stainless Steel
DIN 7985
| d1 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 |
| d2 | 4 | 5 | 6 | 8 | 10 | 12 | 16 |
| k | 1.6 | 2 | 2.4 | 3.1 | 3.8 | 4.6 | 6 |
| m | 2.5 | 2.7 | 3.1 | 4.6 | 5.3 | 6.8 | 9 |
| pitch | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1.0 | 1.25 |
Common Uses
- Electronics and enclosures
- Appliances and equipment
- Marine and outdoor fixtures
FAQ
Do machine screws need a nut?
They go into a tapped hole or take a hex nut or nylon lock nut of the same size. They are not for wood or sheet metal.
How are metric screws measured?
Diameter x pitch x length, in millimeters. Length is measured from under the head to the end of the screw, except flat (countersunk) heads, which are measured overall.
What is A2 stainless steel?
A2 is the metric (ISO 3506) name for 304 type stainless steel, the same family as 18-8. It resists rust outdoors, in wet areas and in washdown use. A4 is the 316 type, for salt water and chemicals.
