The Essential Guide to U-Bolts: Types, Materials, and Applications

U-bolts are among the most versatile and reliable fastening solutions in industrial and construction applications. These specialized fasteners provide secure mounting for pipes, tubes, cables, and structural components across countless industries. Whether you are clamping trailed equipment or exhaust systems, securing machines or down pipes, clinching supports and pipes to pumps or motors, knowing the basics of how to select U-bolts and how to apply them is necessary to make projects successful.

At The Nutty Company, we’ve been manufacturing and distributing U-bolts to professionals across many different industries for decades. This guide to U-bolts will assist you through the process of making the best selection and finding the right materials to meet your application's requirements. From stock U-bolt sizes to custom made U-bolts, we offer a wide bolt assortment and can help with all you need for your application.

What are U-Bolts?

U-Bolt is a fastener in the form of a rod bent into the shape of a U with threading on both ends. The unique U shape offers ample bolt clearance when securing the object by the bolt. Nuts are screwed onto the threaded ends to make the connection.

They are essential in the seating of the pipe or tube to the flange or nozzle. The basic design is a segment of a circle the same diameter as the pipe or tube to be secured with a flat machine on top or bottom to make a flat area to tighten against. The arrangement causes the clamping loads to be distributed uniformly over the perimeter of the clamped object so that the clamped object is protected from any damage and is securely held in place.

The Manufacturing Process of U-Bolts

U-bolt production starts with the choice of the ideal raw material in relation to the intended application's requirements. Steel rods or bars are cut to precise lengths, then heated and bent into the characteristic U-shape using specialized forming equipment. Bending must be well controlled to achieve consistent dimension and to avoid material stress.

The lapped legs are threaded by cutting or rolling after form. Thread rolling is recommended for high strength applications from the tensile strength directly obtained from the material, as rolling work hardens the material and creates stronger threads than its own. Threading operations must be pitch dimensional and dimensional accurate for exact nut to load bearing engagement.

Benefits of Using U-Bolts in Industrial and Construction Projects

Secure Pipe and Tube Support

U-bolts are designed to securely attach tubular items such as pipes, conduit, or tubes to a base. The wrap-around design distributes clamping force around the entire diameter of the thin wall tubing preventing the crushing of thin walled tubing or loosening under vibration. This makes them perfect for use in plumbing, HVAC systems, and process piping where a strong support system is needed.

Versatility in Different Applications

U-bolts adapt to numerous mounting scenarios, from simple pipe support to complex machinery installation. They are perfect for both horizontal and vertical or any angle for mounting applications. This versatility can save the day in a variety of situations in the shop and on the job, adding them to a tool box or in a parts bin is a great way to deal with any untimely issue.

High Strength and Durability

U-bolts, when properly manufactured, provide excellent strength and have a long service life. The smooth curved form is free of stress concentrating welds or joints. Heavy-duty materials and treatment to correct the heat can lead to U- bolts that can carry much tensile force and do not suffer fatigue failures.

Loads can be adjusted and distributed precisely thanks to the screw connection. This tunability ensures that the installation has the correct clamping force for the service life of the article it retains, drawing or slacking from material compaction or thermal conditions.

Cost-Effective Fastening Solution

U-Bolt brackets provide a low cost fastening solution versus custom brackets or weld on options. They are mass-produced as a result of a standardized design and as a result are low in cost, yet of high quality. The general reusability of U-bolts in various applications contributes to their cost-effectiveness.

Types of U-Bolts for Various Applications

Standard U-Bolts

Standard U-bolts follow established dimensional conventions with round bend sections and straight, parallel legs. These general use fasteners are good for most applications. Standard U-Bolts are suitable for supporting pipe work and are used for fastening down pipes onto racks as well as other surfaces.

Most of the configurations are using the industry specification for bend radius, leg spacing, and thread specs. This standardization guarantees that the unit is fully compatible with standard mounting hardware and greatly reduces specification and ordering nature.

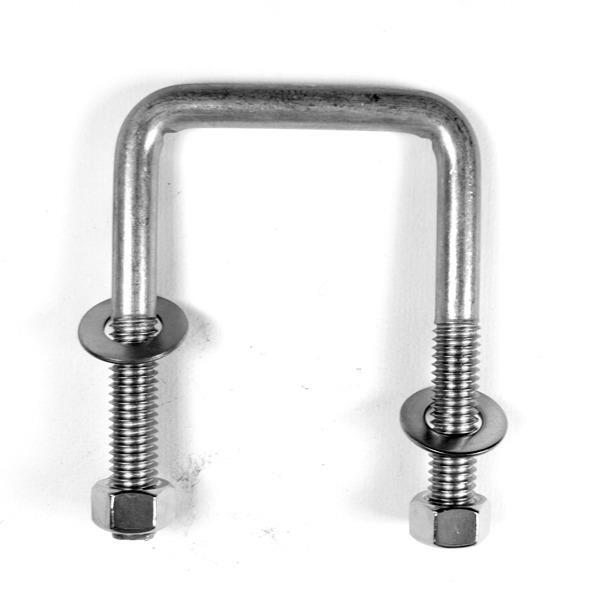

Square U-Bolts

Square bend U-bolts have flat sides which provide more than enough room to clamp your rectangular steel or other industrial applications. The contact faces prevent rotation and provide accurate angular positioning of the components. They are a popular type of fastener that can be used in many applications such as equipment, instruments, and more for architectural use, equipment, construction of machines, and more.

Round U-Bolts

For use with cylindrical items such as pipe, tubing, and cable, these clamps can be mounted to the wall or the ceiling. They have the curve of widely used pipes as well, to ensure more contact area and secure grip. Various bend radii are used to fit different pipe sizes and wall thicknesses.

Custom and Specialty U-Bolts

Custom made U-bolts are fabricated to meet custom requirements since standard configurations don't always meet your specific application. Bespoke designs may include specific dimensions, materials, coatings, or performance characteristics required for a custom application.

Materials Used to Manufacture U-Bolts

Stainless Steel

Stainless steel U-bolts offer superior corrosion resistance and strength, making them ideal for marine, food processing, and chemical applications. Grade 316 stainless steel provides exceptional resistance to chloride corrosion, while Grade 304 handles most general corrosive environments effectively.

The strength of the material itself allows smaller cross sections and load capacities retained advantageous in weight-critical applications. The temperature resistance of stainless steel also makes it ideal for high-temperature applications where carbon steel typically fails.

Carbon Steel

The most conventional material is carbon steel, which gives you a high strength at a good value. A variety of carbon grades can be selected, each with a different yield strength and low yield strength of high heat generating type with high carbon content being higher in strength but lower in ductility.

Galvanized Steel

Galvanized steel U-bolts combine carbon steel strength with zinc coating protection against corrosion. Hot-dip is the most durable choice, while electroplating is cost-effective for less challenging conditions.

Other Specialty Materials

Specialty applications may require exotic materials like Inconel, Hastelloy, or titanium for extreme temperature or corrosion resistance. Aluminum U-bolts provide lightweight solutions for applications where weight is critical.

Brass and bronze U-bolts serve marine applications where both corrosion resistance and electrical conductivity are important. Additionally, these materials have an attractive appearance for architectural applications, where aesthetics is important.

Key Considerations for Choosing the Right U-Bolt

Load Requirements and Strength Ratings

The first step in selecting U-bolts is to determine the loads the fastener will be required to handle. Taking into account both static loads due to the weight of the installed devices and dynamic loads due to vibration, thermal expansion or service loads. The safety factor should include allowances for variations in load, including overload.

Corrosion Resistance and Environmental Factors

The choice of material depends to a large extent on the environmental conditions. Marine environments require stainless steel or heavily galvanized options, while indoor applications may allow carbon steel with light protective coatings.

Compatibility with Pipes or Structural Components

U-bolt sizes are based on the size of the clip they will be fitting. Selection depends on pipe diameter, wall thickness, and mounting plates. Correct fit reduces assembly time and prevents damage during service and installation.

When choosing U-bolt configurations, take future maintenance access into account. Proper wrench and removal tool clearance ease service and keep maintenance costs down.

Standards and Certifications (ISO, DIN, ASTM)

Standardization is a good thing because it means U-bolt quality and performance is maintained. ASTM standards detail material characteristics and test indicators, while ISO and DIN specifications identify dimensional tolerance and manufacturing quality.

Maintenance and Safety Tips for U-Bolts

Periodic inspection of U-bolt applications can help you catch issues before they become failures. Look for corrosion, thread damage or loosening from vibration or thermal cycling. Torque values should be double checked periodically, particularly in critical applications.

The correct methods of installation are necessary to prevent early failure and to guarantee long term performance. Torque to spec, but do not over tighten. Thread compound could aid in achieving torque values and avoid galling.

Replace U-bolts showing signs of wear, corrosion, or damage rather than attempting repairs. The low cost of replacing the part relative to the risk of failure also argues for replacement. Have U-bolts on hand in your bolt collection for repairs and maintenance.

Some of the safety concerns include knowing the load limits, and not making modifications that may impact on the strength of the bow. Do not weld to U-bolts or modify their design in any way without consulting an engineer as this will introduce the possibility of dangerous stress concentrations.

Conclusion

U-bolts represent essential fastening solutions for countless industrial, construction, and maintenance applications. Knowing their types, materials and how they’re utilized can help you decide what type of fastener would best suit your needs as well. Whether you require standard configurations from existing inventory or custom made U-bolts for specialized applications, proper selection ensures reliable performance and long service life.

The Nutty Company's extensive experience in fastener supply and technical support helps customers navigate U-bolt selection challenges. Our comprehensive nuts & bolts inventory includes standard and specialty U-bolts to meet diverse application requirements. Contact our technical team for assistance with your next project, we're here to help you select the right fastening solutions for lasting success.
