Eye Bolt vs. Eye Nut: What’s the Difference?

Introduction

When it comes to lifting and rigging applications, choosing the right hardware can make the difference between a safe, successful operation and a potentially dangerous situation. Two essential components that often cause confusion are eye bolts and eye nuts. While these fasteners may appear similar at first glance, they serve distinct purposes and have unique characteristics that make them suitable for different applications.

Understanding the differences between eye bolts and eye nuts is crucial for anyone working with heavy loads, rigging systems, or securing structures. Whether you're a professional rigger, construction worker, or DIY enthusiast, knowing when to use each type of hardware ensures both safety and efficiency in your projects. This comprehensive guide will explore the key differences, applications, and selection criteria for both eye bolts and eye nuts, helping you make informed decisions for your specific needs.

What is an Eye Bolt ?

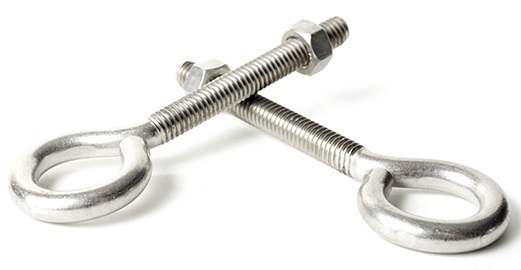

An eye bolt is a specialized fastener that features a threaded shaft with a closed loop or "eye" at one end instead of a traditional bolt head. The threaded shaft allows the eye bolt to be screwed into a threaded hole or secured with a nut and bolt combination. The eye portion serves as a secure lifting point or attachment point for cables, chains, ropes, or other rigging hardware.

Eye bolts are engineered to handle significant loads and are commonly manufactured from high-strength materials such as stainless steel, carbon steel, or galvanized steel. The design allows for safe lifting and securing of heavy loads while providing a reliable connection point that distributes stress evenly across the fastener.

Types of Eye Bolt

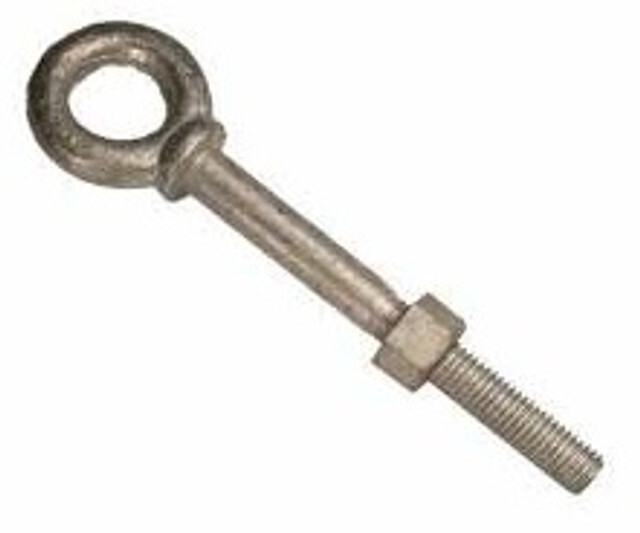

Shouldered Eye Bolts: These feature a shoulder or collar beneath the eye that bears against the surface when installed. Shouldered eye bolts are designed for angular loading and can handle loads applied at various angles. The shoulder provides additional bearing surface and helps distribute the load more effectively.

Non-Shouldered Eye Bolts: Also known as straight eye bolts, these have a continuous threaded shaft from the eye to the tip. They are primarily designed for straight-pull applications and should not be used for angular loading. Non-shouldered eye bolts are typically less expensive but have more limited applications.

Lifting Eyebolt Varieties: Specialized lifting eyebolts come in various configurations, including swivel eye bolts that allow rotation under load, and heavy-duty versions designed for extreme load capacity requirements in industrial lifting applications.

What is an Eye Nut?

An eye nut is a fastener that combines the functionality of a standard nut with an integrated eye or loop. Unlike eye bolts, eye nuts are designed to thread onto an existing threaded rod or bolt, creating a lifting point or attachment point at the end of the fastener assembly. The eye portion extends outward from the nut body, providing a secure connection point for rigging hardware.

Eye nuts are particularly useful when you need to create a lifting point on an existing threaded shaft or when space constraints make eye bolts impractical. They offer versatility in applications where the threaded rod or bolt serves multiple purposes beyond just providing an attachment point.



Types of Eye Nut

Standard Eye Nuts: These feature a conventional nut body with an integrated eye. They thread onto standard bolts or threaded rod and are suitable for moderate load applications.

Heavy-Duty Eye Nuts: Designed for demanding applications, these eye nuts feature reinforced construction and higher load capacity ratings. They're often used in industrial lifting and rigging applications where maximum strength is required.

Wing Eye Nuts: These combine the functionality of wing nuts with an eye, allowing for hand tightening while providing an attachment point. They're ideal for temporary installations or applications requiring frequent adjustment.

Key Differences Between Eye Bolt and Eye Nut

Purpose and Use Cases

The primary difference between eye bolts and eye nuts lies in their intended applications. Eye bolts are designed to be threaded directly into a threaded hole or used with a separate nut, creating a permanent or semi-permanent lifting point. They're ideal when you need to establish a dedicated attachment point in a structure or component.

Eye nuts, conversely, are designed to thread onto existing bolts or threaded rod, converting a standard fastener into a lifting point. This makes them perfect for situations where you need to add lifting capability to an existing bolt assembly or when working with threaded rod installations.

Design Differences

Eye bolts feature a threaded shaft with the eye as an integral part of the fastener head. The threading typically extends along the entire shaft length, allowing for various installation depths. The eye is permanently attached and aligned with the bolt axis.

Eye nuts have a threaded bore that accepts external threading, with the eye extending outward from the nut body. The eye orientation can often be adjusted by rotating the nut, providing some flexibility in positioning the attachment point.

Installation Methods

Installing eye bolts requires either threading them into a pre-tapped hole or using them with a separate nut and bolt combination. The installation depth can be adjusted by how far the bolt is threaded into position. Proper installation requires ensuring adequate thread engagement and proper torque specifications.

Eye nuts install by threading them onto existing bolts or threaded rod. Installation involves threading the nut to the desired position and securing it with proper torque. The eye orientation can be adjusted during installation by controlling the final positioning of the nut.

Strength and Load-Bearing Capacity

Both eye bolts and eye nuts can handle significant loads when properly selected and installed, but their load capacity depends on several factors including material, size, and installation method. Shouldered eye bolts typically offer higher load capacity for angular loading situations, while eye nuts may have slightly reduced capacity due to the threaded connection interface.

Load capacity ratings vary significantly based on the specific design, material, and manufacturer specifications. Stainless steel eye bolts and eye nuts offer excellent corrosion resistance while maintaining high strength characteristics, making them ideal for marine applications and outdoor use.

What are Eyenuts and Eyebolts Used For?

Lifting Loads

Both eye bolts and eye nuts serve as critical components in lifting systems. They provide secure attachment points for hoists, cranes, and manual lifting equipment. In industrial settings, these fasteners enable the safe movement of heavy machinery, building components, and manufactured goods. The eye design allows for easy connection of lifting cables, chains, or slings while ensuring the load is properly distributed.

Securing Structures

Eye bolts and eye nuts are extensively used in structural applications to secure guy wires, tension cables, and support systems. In construction, they anchor temporary structures, scaffolding, and safety lines. The permanent installation capability makes them ideal for long-term structural support applications where reliable attachment points are essential.

Rigging

Professional rigging operations rely heavily on eye bolts and eye nuts for creating secure connection points in complex lifting and positioning systems. Theater rigging, entertainment industry applications, and stage construction utilize these fasteners to support lighting, sound equipment, and scenic elements safely above audiences.

Marine Applications

The marine industry extensively uses stainless steel eye bolts and eye nuts due to their corrosion resistance and strength. They secure rigging on sailboats, anchor safety equipment on commercial vessels, and provide attachment points for dock lines and mooring systems. The ability to withstand saltwater exposure while maintaining structural integrity makes them indispensable in marine environments.

Theatrical Rigging

In entertainment venues, eye bolts and eye nuts support lighting systems, stage equipment, and special effects apparatus. The critical safety requirements in these applications demand high-quality fasteners with verified load ratings and regular inspection protocols.

Important Considerations for Selecting Eye Bolts and Eye Nuts

When selecting between eye bolts and eye nuts, several factors must be considered to ensure safe and effective operation. First, evaluate the load requirements and determine whether the application involves straight-pull or angular loading. Shouldered eye bolts are essential for angular loading situations, while non-shouldered versions are adequate for straight-pull applications only.

Material selection is crucial for longevity and performance. Stainless steel options provide superior corrosion resistance, making them ideal for outdoor, marine, or chemical environments. Carbon steel versions offer high strength at lower cost but may require protective coatings in corrosive environments.

Thread compatibility is essential when selecting eye nuts, as they must match the existing threaded rod or bolt specifications. Verify thread pitch, diameter, and engagement length to ensure proper fit and load transfer.

Consider the installation environment and accessibility requirements. Eye bolts may be preferable when creating new attachment points, while eye nuts are ideal for retrofitting existing installations or when working with nut & bolt assemblies.

Load capacity calculations should always include safety factors appropriate for the application. Consult manufacturer specifications and consider dynamic loading conditions that may exceed static load ratings.

Conclusion

Understanding the differences between eye bolts and eye nuts is essential for selecting the right fastener for your specific application. While both serve as critical components in lifting and rigging applications, their distinct designs and installation methods make them suitable for different situations.

Eye bolts excel in applications requiring permanent or semi-permanent lifting points, offering robust performance in both straight-pull and angular loading conditions when properly selected. Eye nuts provide versatility for retrofitting existing installations and working with threaded rod systems, making them valuable additions to any fastener inventory.

Whether you choose stainless steel eye bolts for marine applications or heavy-duty eye nuts for industrial lifting, proper selection based on load requirements, environmental conditions, and installation constraints ensures safe and reliable operation. Unlike plastic screws or standard fasteners, these specialized components are engineered specifically for demanding applications where failure is not an option.

By understanding the unique characteristics of each fastener type and following proper selection criteria, you can confidently choose between eye bolt and nut combinations that will provide years of reliable service in your most demanding applications.
