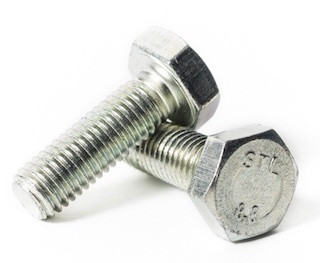

M5 x 0.8 Hex Head Cap Screws - Class 8.8 - DIN 933 Full Thread

M5 x 0.8 Class 8.8 hex head cap screws, zinc plated, made to DIN 933 with threads all the way to the head. We stock lengths 6mm to 50mm. Lengths are measured from under the head.

Specifications

Thread: M5 x 0.8, standard pitch
Strength: Class 8.8, 800 MPa (about 116,000 psi) tensile
Standard: DIN 933, full thread
Lengths: 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm
Finish: zinc plated
Wrench size: 8mm

Common Uses

Machinery and equipment
Car and motorcycle repair
Brackets and frames

FAQ

What is the difference between DIN 933 and DIN 931?
DIN 933 hex cap screws are threaded all the way to the head (full thread, FT). DIN 931 have a plain shank under the head and are threaded only near the end (partial thread, PT). Use partial thread where the shank passes through a hole or takes a shear load.

What nut fits an M5 x 0.8 bolt?
An M5 x 0.8 standard pitch metric hex nut, Class 8 or stronger. Use an M5 washer.

What tap drill do I use for M5 x 0.8?
4.2mm. The clearance hole for an M5 bolt is 5.5mm (medium fit).
