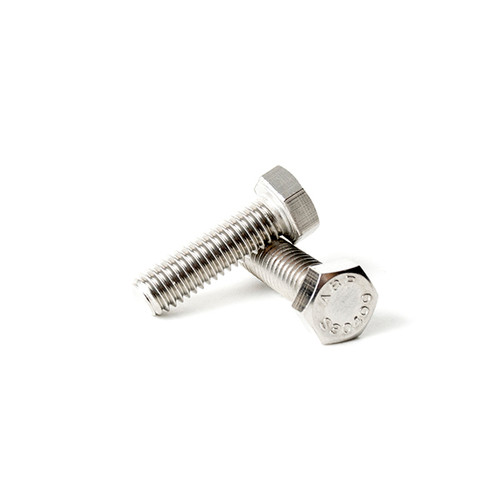

1"-8 Stainless Hex Head Cap Screws

1"-8 hex head cap screws with USS coarse (UNC) thread, made from 18-8 stainless steel. We stock 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 6", 7", 8" lengths. They take a 1-1/2" wrench. Short lengths are fully threaded and longer lengths partially threaded.

Hex Head Cap Screw Stainless | The Nutty Company, Inc.

Specifications

Size: 1"-8 (USS coarse)
Lengths: 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 6", 7", 8"
Wrench size: 1-1/2"
Thread: USS coarse (UNC)
Material: 18-8 stainless steel

The length of a cap screw is measured from the under-head bearing surface to the extreme end of the screw.
(FT)=Full Thread | (PT)=Partial Thread
Thread Length on a 1-8 bolt is approx. 2-1/4"
Wrench Size = 1-1/2"

Common Uses

Outdoor and marine assemblies
Food and process equipment
Corrosive and washdown areas

FAQ

What nut fits a 1"-8 stainless cap screw?
A 1"-8 18-8 stainless hex nut, or a nylon insert lock nut where vibration is a concern, with a 1" stainless flat washer.

How do I stop stainless threads from galling?
Stainless threads can seize (gall) when tightened fast or under heavy load. Put anti-seize on the threads, tighten slowly at low speed, keep the threads clean and don't overtighten.

How strong are 18-8 stainless bolts?
18-8 stainless bolts to ASTM F593 have a minimum tensile strength of about 100,000 psi in 1/4" to 5/8" and about 85,000 psi in 3/4" to 1-1/2". That is stronger than Grade 2 steel but not as strong as Grade 5 or Grade 8.
