Threaded Rod: The Ultimate Guide

A threaded rod is one of the most common fasteners used in the development of industries such as construction, manufacturing, and engineering. These continuous threaded bars provide infinite adjustability, exceptional strength, and cost-effective solutions for countless assembly challenges. From supporting heavy structural loads to precise positioning in delicate machinery, threaded rods have become indispensable tools across virtually every industry.

At The Nutty Company, we understand that selecting the right threaded rod can make the difference between project success and costly failures. This comprehensive guide explores everything you need to know about threaded rods, from basic concepts to advanced applications. This comprehensive guide informs you on everything worth knowing about threaded rods, from basic facts to application specifics. No matter if you are dealing with metric or standard threaded rod, or a specialty type like an acme threaded rod for linear motion, you'll find all the info you need in this guide so you can better determine what type of threaded rod best fits your requirements.

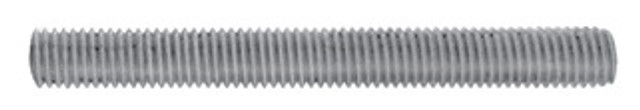

What is a Threaded Rod?

Threaded rod, otherwise known as all-thread or continuously threaded rod, is a rod with thread throughout its length. Unlike standard bolts that have unthreaded shanks and heads, threaded rods maintain consistent threading from end to end, allowing nuts to be positioned anywhere along their length.

With a continuous threading pattern, these threaded rods are easy to cut, so you can customize your own size and length. Standard lengths typically range from 12 inches to 20 feet, though custom threaded rod is readily available for specialized applications.

The standardized threading allows threaded rods to accept standard nuts, washers, and other hardware components. This compatibility with existing fastener ecosystems makes threaded rods a versatile and cost effective alternative to complex custom designed systems.

What is Threaded Rod Used for?

Applications of threaded rods are as varied as the industries that use them, since the fasteners offer both strength and adjustability in conjunction with the ability to be custom-cut to the right length. Typical applications are anchoring in concrete and in structural steel to support structural members such as columns, for both tension and shear loading.

Suspension systems frequently employ threaded rods to support pipes, conduits, ductwork, and equipment. The adjustable nature easily adjusts to the appropriate level or load distribution, as well as the building settling, or thermal movement.

Temporary structures such as scaffolding, forms, and support frames are made of threaded rods that can be quickly assembled and dismantled. They can be used over and over again, so they are often used for construction and maintenance.

Threaded Rod Types & Characteristics

Conventional threaded rods adhere to industry standards that dictate thread size and pitch as well as material use. These are the go-to rods for everyday use that provide all-around solid performance and are generally compatible with regular hardware.

Metric threaded rod follows international standards with dimensions specified in millimeters rather than inches. These rods are essential for international projects, imported equipment, and applications requiring metric compatibility. Thread pitches are based on metric standards, which have different strength and adjustment characteristics than imperial threads.

Acme threaded rod is used with the matching Acme nut in applications where the rod has a rotating or oscillating motion; the Acme nut remains fixed, and the screw does the work. The large, polished V form reduces tension loads, ensures proper alignment, promotes ease of assembly while offering highly resistance to wear and load. It's used in lead screws, jacks, and other mechanical devices where smooth movement is required.

Left-hand threaded rods turn counterclockwise for tightening, opposite to the standard right-handed threads. These unique rods prevent loose connections in applications where a rotational force would cause standard fastening to loosen. They're frequently used in rotating machinery and other applications that require precision assembly.

Applications of Threaded Rods

1. Construction

Construction is the largest application sector for threaded rod products. Structural applications include building columns, such as interior lally columns, heavy-duty column supports, lolly columns, and related applications. Threaded rods are the choice for all anchor bolts, holdowns and seismic restraint systems for foundations.

In concrete construction, threaded rods are used with post tensioning, lifting and equipment anchoring applications. The adjustability permits accurate placement and load transmittance in intricate structural formations. Precast concrete connections Precast concrete elements are often connected using steel threaded rods to connect panels or load- bearing components.

2. Automotive Assembly

Threaded rods are used in the automotive industry in the exhaust, suspension systems, and vehicle body assemblies. The adjustability serves to allow for manufacturing tolerances to be accommodated, while still maintaining proper alignment and space.

Threaded rods are regularly used in custom automotive applications to extend the reach of your other fasteners, often for one-off fabricated parts that you simply can't purchase from a catalog. Hot rod builders with custom fabrication depend on threaded rods for strut, control arm and chassis adjustments.

3. Manufacturing

Threaded rods are used in machine enclosures, press framework, and many other applications. CNC machines use precision threaded rods for axis drives and tool positioning systems where accuracy and repeatability are paramount.

Assembly fixtures utilize threaded rods to create adjustable jigs and holding devices. Infinite positioning on the head means that depending on variation, one fixture can handle a number of part variations The tooling costs and set-up time are greatly reduced using single-work fixtures.

4. Electrical Installation

Threaded rods in electrical applications are used with conduit hangers, strut clamps, and equipment supports. The adjustability ensures correct spacing and alignment in complicated electrical hook-ups, in which precise position is a must.

Telecommunications facilities use threaded rods to install antennas, equipment racks and cable support systems. Fine-tuning upon installation to maximize signal performance and ensure physical safety is possible.

5. Plumbing

Threaded rods are used for pipe support, equipment support, and for seismic support in plumbing installations. The adjustability enables proper pipe placement, and compensates for thermal expansion, while also complying with code standards.

Threaded rods are used in water treatment installations for equipment supports, tank connections, and pipe hanging materials requiring corrosion resistance and adjustability. Options are available in stainless steel and galvanized for high-humidity applications.

HVAC applications include using threaded rod for hanging ductwork, equipment, and various fixtures. The unrivaled adjustability allows for system balance and noise control and allows for the building flexibility.

6. Agriculture and Plant Maintenance

Agricultural applications include equipment frames, irrigation systems, and building construction where adjustability and strength are important. The outdoor climate requires corrosion resistant materials and durable construction.

Threaded rods are utilized in plant maintenance for temporary supports, alignment tooling and machinery modifications. The versatility also allows ground crews to fill unexpected on-site repairs.

7. Medical Machinery

When precision is critical to product performance, medical equipment applications call for quality threaded rods produced to exacting standards. Smooth and precise adjusting mechanisms are required on patient positioning devices, diagnostic equipment and surgical tools.

8. Marine Engineering

In marine uses, saltwater exposure is the most severe and greater corrosion protection is necessary. The stainless steel threaded rod stands up to aquatic conditions that would quickly degrade a standard steel rod.

Boat builders and maintenance workers use threaded rods for tuning, equipment fastening and structural upgrades. The adjustability is to allow for field measurements and variations in installation that are common in marine work.

Material Selection for Threaded Rods

Mild Steel

Mild steel threaded rods are an economical choice for low-strength applications that don't require special performance characteristics. It is an inexpensive material with excellent tensile strength, impact resistance, and low-cost machining.

Carbon is also a requirement for the development of higher strength and less ductility in higher carbon grades of steel. Extreme applications with high demands on performance may also benefit from heat treatments.

Stainless Steel

Stainless steel provides better corrosion resistance than carbon steel for outdoor, underwater, and chemical applications. Grade 304 gives general purpose corrosion resistance, Grade 316 offers chloride resistance in particular for marine use.

The build material is so strong that it allows branch diameters to be kept smaller, yet still fully capable of carrying a load, which would be advantageous for weight-critical applications. Stainless steel is also ideal for installation in high-temperature applications.

Galvanized

Galvanized steel offers economical, light weight protection against corrosion. Hot-dip galvanizing has greater corrosion resistance than electroplated coating and is suitable for outdoor use.

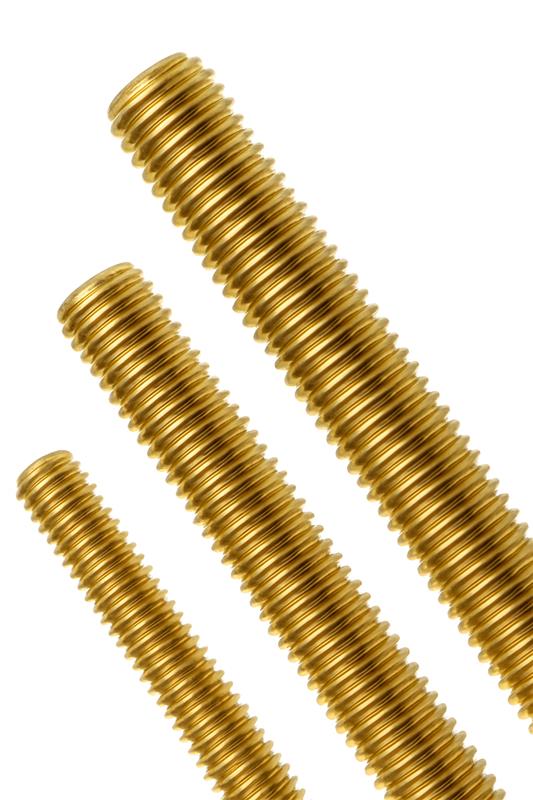

Brass and Nylon

Brass threaded rods combine long lasting corrosion resistance with good electrical conductivity and are often used in marine environments. It is also aesthetically pleasing for architectural uses.

Specialized uses of nylon and plastic threaded rod may involve the applications where metal contamination or corrosion, or electrical or insulative conductivity is a concern. They can offer properties that could not be substituted with a metallic material.

Thread Pitch, Count, and Load Capacity

Thread Pitch and Count

Thread pitch represents the distance between adjacent thread crests, typically measured in threads per inch for imperial systems or millimeters for metric systems. Finer pitches provide more holding power with better adjustments and a nicer feel. It will, however, require more turns to achieve the same amount of linear travel.

Coarse threads offer faster assembly and better performance in soft materials, while fine threads provide superior holding power and fatigue resistance in hard materials. The best kind of thread depends on the specific demands of the application.

Load Capacity

Load capacity depends on material properties, thread engagement length, and safety factors. Tensile strength represents the maximum load before failure, while yield strength indicates the load causing permanent deformation.

Appropriate safety factors allow for load fluctuations, environmental factors, and the effects of failure. Loading also has to be calculated in engineering in static and dynamic conditions to leave enough margin for performance.

Installation and Maintenance of Threaded Rods

Proper installation starts with choosing a adequate material and size for the application. Engagement length of the threads must be sufficient for strength without being overly long, thereby complicating the final assembly.

Lubrication is used to lower the installation torque and to prevent galling, especially when using stainless fasteners. Anti-seize products offer long term protection in the prevention of rust or corrosion and allow for easy disassembly.

Scheduled maintenance identifies issues before they turn into costly failures. Look for corrosion, thread damage or vibration/thermal cycling loosening. Correct torque values on fasteners allow the correct amount of clamping force without over tightening.

Maintenance will include occasional retorquing particularly in a vibration or thermal cycling application. This is the stock size you want to keep in your shop for emergency repairs and regular maintenance.

Conclusion

Threaded rods are very efficient and cost-effective pieces for many applications. Material options, thread size and application specifics help determine which product is best for the job.
