Tips for Selecting Metric Washers

Selecting the right metric washers for a job can be the difference between a successful system or failed operation. No matter if you’re repairing a car, electronics, or an entire piece of machinery, selecting the right washer for your application has to take several factors into account. At Nutty, we know that small parts do play a big role in making your project a big success.

What Are Metric Washers?

Metric washers are disk-shaped fasteners that attach to metric bolts and screws. Unlike imperial washers measured in inches, metric washers follow the International System of Units, with dimensions specified in millimeters. These essential components distribute the pressure of the nut over the surface, thus protecting the surface from damage, damaging other parts, and making a strong and reliable connection in many applications.

There are many different types of metric washers, ranging from general flat washers to lock washers and spring washers. Each type serves specific purposes and it's essential to know when to use the right one to make informed choices. The metric system's precision allows for tighter tolerances and more consistent performance across international manufacturing standards.

Tips for Selecting Metric Washers

Measure Accurately Before Choosing

When choosing a metric washer, precision is most important. Remember to measure the bolt diameter, thread pitch, and space for tightening. A washer that’s too small won’t provide enough load distribution, and one that’s too big may interfere with surrounding components. Use calipers or precision measuring tools rather than estimating dimensions.

Record the inner diameter (ID), outer diameter (OD), and thickness measurements. These specifications ensure proper fit and function. Remember that metric sizing is true, so a 10mm bolt requires a washer with a 10mm or a slightly larger inner diameter for proper clearance.

Match Washer Type to Application

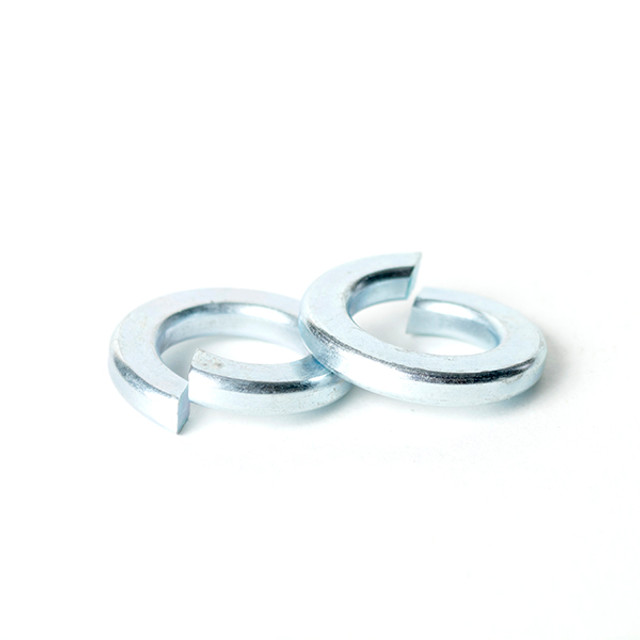

Various applications require unique kinds of washers. Flat washers are ideal for general assembly around the home. Lock washers resist loosening under vibrations in materials and dynamic loads.

Use these washers for high-strength applications that require larger fastener diameters. For downstream materials like aluminum or plastic, it is important to select washers that will not mar the substrate, but can sufficiently support the downstream material.

Select the Right Material for the Environment

The kind of material used is directly related to the performance and life of the washer. Stainless steel provides good corrosion resistance for both marine and food applications. Galvanized washers offer an inexpensive shield against rust in typical outdoor environments, in many types of buildings and landscaping applications.

Carbon steel washers provide high strength at a low cost, but require protective coatings to prevent rust. For more specific applications, look into brass, aluminum or even plastic washers based on whether or not the electric potential might be a factor or if you need to factor in things such as weight, or chemical compatibility.

Check Strength Requirements

Assess the structural stresses that your assembly may face. Washers that must absorb severe loads without deformation must be of high strength material. Inspect the material-grade and thickness of the washer to make sure it will suit your load.

Look at both static and dynamic loadings. In applications involving vibration, thermal cycling or cyclic stress, better fatigue performance is required. Heavy steel washers are an excellent choice for demanding industrial application requirements.

Verify Compliance with ISO or DIN Standards

Metric washers should comply with international standards like ISO 7089, ISO 7090, or DIN 125. These standards ensure dimensional control and the material properties of the pipe’s body, as well as the engineering properties and performance of air-cured, steam-cured, and low-pressure steam-cured pipe. Compliance ensures interchangeable and constant quality from various manufacturers and suppliers.

Tolerances, surface finish requirements and testing procedures are also defined by standards. By using compliant washers, you can help prevent installation problems and maintain a much higher degree of quality and order for your project.

Avoid Mixing Metric and Imperial Hardware

Never combine metric and imperial parts in a single assembly. Some sizes may look alike but have different dimensions that can lead to loose joints and unsafe conditions. Stick to metric washers when using metric bolts and screws.

Keep all the metric and imperial hardware completely separated from each other so they cannot be accidentally mixed together. Label storage containers clearly and train team members on the importance of hardware system consistency.

Consider Surface Protection for Delicate Finishes

For use with finished or precision surfaces and with stock which has limited exchangeability, select a washer that will not scratch or mar the surface. Soft materials, such as rubber, plastic and brass, offer great surface protection combined with good load distribution.

On painted or powder coated surfaces, use edge-free washers with a protective coating. Oversize washers which spread the load over a larger surface area to decrease pressure.

Account for Thickness Tolerances

The thickness of the washer has an influence on joint preload and clearances. Indicate thickness tolerances to fit your assembly needs. In more recent times, certain specific applications may require control of the thicknesses to exact values to produce optimum spacing, whereas other applications are tolerant of normal manufacturing tolerances.

Buy From Reputable Suppliers

Source your metric washers from reliable suppliers such as Nutty to ensure consistent quality. Material certification, dimensional verification, and technical support is available from reliable suppliers on an as needed basis. While quality washers are more expensive to start, prospective buyers will find that paying for value upfront pays dividends in performance and savings over the long life of the machine.

Plan for Future Maintenance and Disassembly

When choosing washers, you should take into account long-term serviceability. Opt for the types of materials and construction that will be accessible and removable after long term use. Stainless steel or galvanized washers prevent rusting, which could cause problems with maintenance later on.

Application-Specific Considerations

Automotive and Machinery Uses

In automotive applications, you need washers that can stand up to vibration, temperature, and exposure to fluids. Select from both galvanized and stainless steel washers for both engine compartments and undercarriage use. The lock washers help prevent loosening due to road vibration and thermal cycling.

Heavy machinery requires thick steel washers capable of handling high loads and stress concentrations. Consider the operating environment and select materials accordingly; marine equipment needs different protection than indoor manufacturing machinery.

Electronics and Precision Equipment

Electronics applications often require non-conductive washers to prevent electrical shorts. The washers are made of plastic, ceramic or anodized aluminum construction for insulation, but retain mechanical strength. EMI/RFI shield shaping may also be a factor in material type selection.

Precision machinery requires close tolerances and surface finishes. Quality metric washers promote uniform assembly and do not interfere with sensitive parts.

Outdoor and Marine Environments

When used outdoors, washers are constantly subjected to the elements: water, UV light, and temperature changes. Stainless steel or heavy galvanized washers provide corrosion resistance in these environments. Marine applications particularly benefit from 316 stainless steel's superior salt-water resistance.

Take into consideration the thermal expansion variations between washer and substrate treads. Dissimilar materials can create stress concentrations as temperatures fluctuate throughout service life.

Conclusion

The selection of your washer assortment is to be based on its dimensions, material properties, ductility, mechanical function, environment to which it is exposed, service temperature and application. By adhering to these best practices, and working with high quality vendors like Nutty, you can be confident your assemblies will function properly for the entirety of their productive existence. Continue reading You might assume that the right kind of washers is a trivial point in a project, but it feels very obvious when you have chosen the wrong ones.
