Round Bend U Bolts with Plates - Plated Steel



 gubdia.jpg usa.jpg

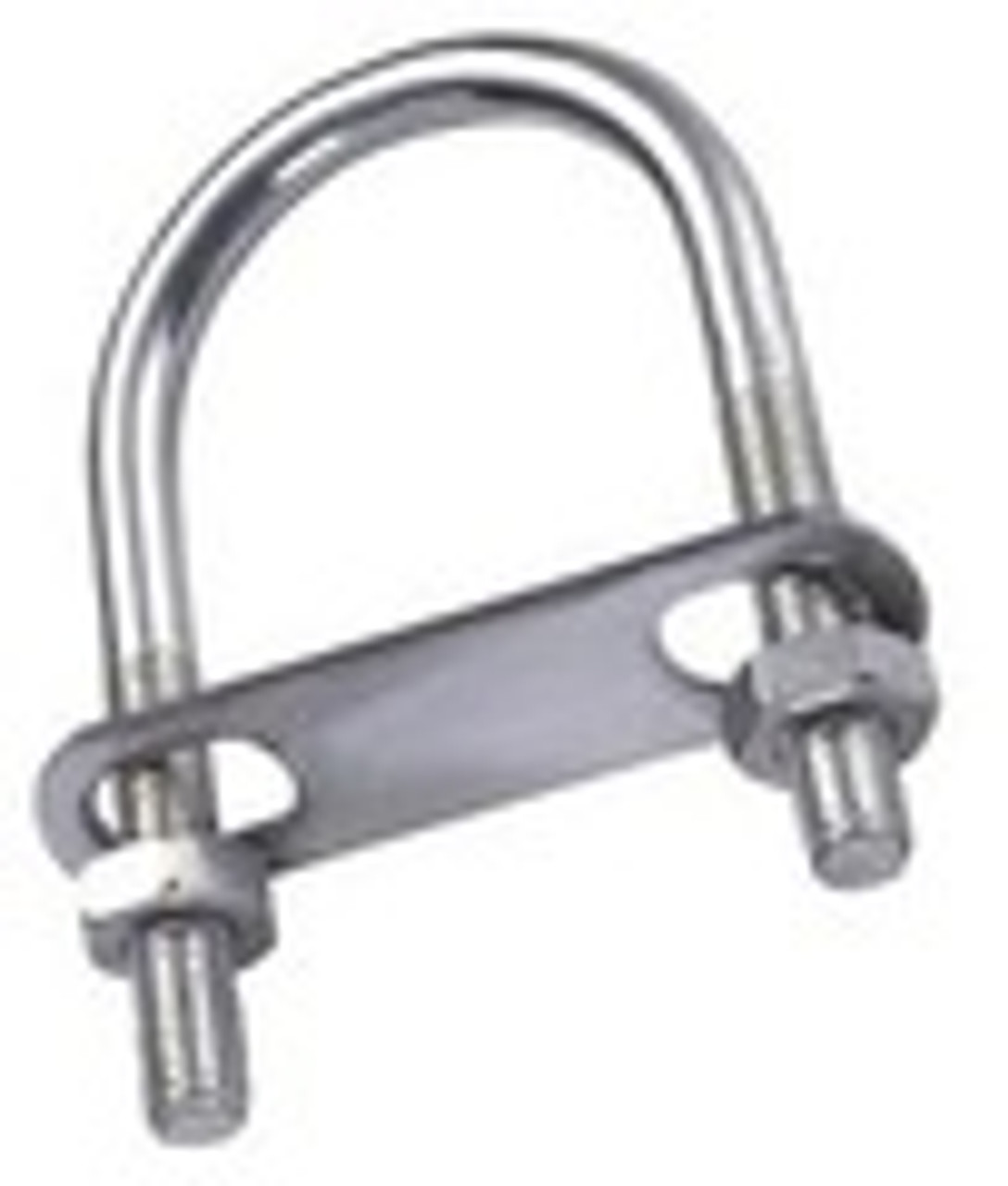

U Bolts supplied with Plate & 2 Hex Nuts

Stock No.

Diameter & Thread (A)

I.D.  (C)

Inside Length (B)

Thread Length (T)

Pipe Size

UB1

1/4"-20

9/16"

1-1/4"

3/4"

1/4"

UB2

1/4"-20

3/4"

1-1/4"

5/8"

3/8"

UB3

1/4"-20

3/4"

2-1/4"

1-1/2"

3/8"

UB4

1/4"-20

1"

1-3/4"

1"

1/2"

UB4L

1/4"-20

1"

2-3/4"

1-1/4"

1/2"

UB5

1/4"-20

1-1/8"

2"

1"

3/4"

UB5L

1/4"-20

1-1/8"

3-1/8"

1-1/2"

3/4"

UB6

1/4"-20

1-1/4"

2-1/4"

1-1/4"

3/4"

UB7

1/4"-20

1-1/2"

2-3/4"

1-3/8"

1"

UB8

1/4"-20

1-3/4"

3"

1-3/8"

1-1/4"

UB9

1/4"-20

2"

3-1/4"

1-3/8"

1-1/2"

UB10

5/16"-18

1"

2-3/16"

1-3/8"

1/2"

UB101

5/16"-18

1-1/8"

2-3/16"

1"

3/4"

UB11

5/16"-18

1-3/8"

2-3/16"

1"

1"

UB11L

5/16"-18

1-3/8"

3-5/8"

2"

1"

UB12

5/16"-18

1-1/2"

2-3/16"

1"

1"

UB13

5/16"-18

1-3/4"

2-11/16"

1-1/8"

1-1/4"

UB13L

5/16"-18

1-3/4"

4-1/2"

2"

1-1/4"

UB14

5/16"-18

2"

2-11/16"

1"

1-1/2"

UB14L

5/16"-18

2"

4-3/4"

3"

1-1/2"

UB15

5/16"-18

2-1/2"

3-3/16"

1"

2"

UB15L

5/16"-18

2-1/2"

5-5/8"

3"

2"

UB16

5/16"-18

3"

3-11/16"

1"

2-1/2"

UB17

3/8"-16

1"

2-1/4"

1-1/4"

1/2"

UB18

3/8"-16

1-1/4"

2-1/4"

1-1/4"

3/4"

UB19

3/8"-16

1-1/2"

2-1/2"

1-1/4"

1"

UB2

3/8"-16

1-3/4"

2-3/4"

1-1/8"

1-1/4"

UB21

3/8"-16

2"

2-5/8"

1-1/4"

1-1/2"

UB22

3/8"-16

2-1/2"

3-1/8"

1-1/4"

2"

UB23

3/8"-16

3"

3-5/8"

1-1/4"

2-1/2"

UB23L

3/8"-16

3"

6-5/8"

3"

2-1/2"

UB24

3/8"-16

3-1/2"

4-1/8"

1-1/4"

3"

UB25

1/2"-13

3"

4-1/2"

1-5/8"

2-1/2"

UB26

1/2"-13

3-1/2"

5"

1-1/2"

3"

UB26L

1/2"-13

3-1/2"

8-1/2"

3"

3"

UB27

1/2"-13

4"

5-1/2"

1-1/2"

3-1/2"

UB28

1/2"-13

4-1/2"

6"

1-1/2"

4"
!
